Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated

Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated
Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated

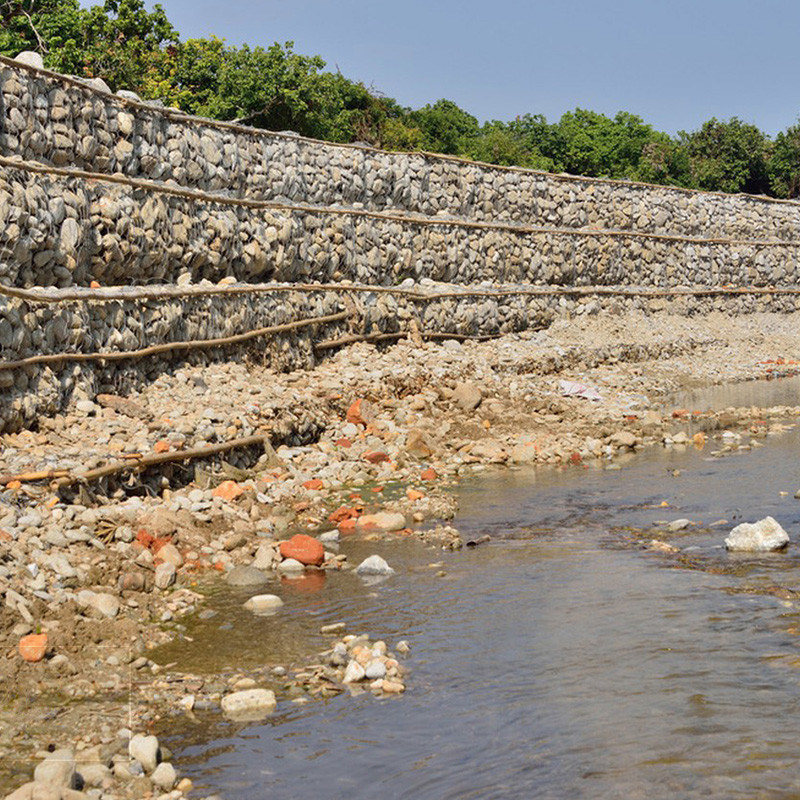

Large Image :  Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-gabion mattress
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 16-20
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day
Contact Now Chat Now
Detailed Product Description
Surface Treatment: Hot-dipped Galvanized Zinc Coating: 240-275g/m²
Mesh Size: 60x80mm Application: Erosion Control, Slope Protection, Riverbank Protection
Wire Diameter: 2.7mm Size: 2x1x1m
Durability: Long-lasting Material: Galvanized Steel Wire
Product Name: Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated Key Words: Gabion Mattress
Highlight:

zinc coated gabion mattress

,

zinc coated gabions and mattresses

,

slope gabion mattress

Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated
Woven Gabion Mattress for Hydraulic Engineering
Our woven gabion mattresses feature double-twisted hexagonal steel mesh (2.2-3.0mm wire) with heavy galvanization (≥260g/m²) for superior erosion protection in shallow water applications. The low-profile design (150-300mm height) with 60×80mm mesh provides optimal velocity reduction (30-50%) while permitting 90%+ water flow. Ideal for channel lining, riverbed stabilization, and coastal revetments. The flexible structure conforms to uneven surfaces while resisting 4m/s currents. Includes internal diaphragms for stability. Certified to EN 10223-3 standards with 25+ year design life. Custom sizes available for comprehensive hydraulic solutions.
Key Features
  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
Technical Advantages
  • 3x Lifespan: 50-100 years corrosion resistance
  • Load Capacity: Up to 50kN/m² vertical pressure
  • Eco-Friendly: 100% recyclable materials with zero chemical runoff
  • Modular Assembly: Interlocking panels for 70% faster installation
Applications
  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention
Customization Services
  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
Gabion Specifications
Mesh hole model
8x10cm 6x8cm
Length(m) | Width(m) | Height(m)
Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter | Zinc Mesh diameter | Zinc
2.7mm | >245g/m² 2.0mm | >215g/m²
Side wire diameter | Zinc Side wire diameter | Zinc
3.4mm | >265g/m² 2.7mm | >245g/m²
Binding wire diameter of 2.7m Binding wire diameter of 2.0m
Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated 0
