2x1x1 Gabion Box Wall PVC Coated Hot Dipped Galvanized Gabion Netting Rolls

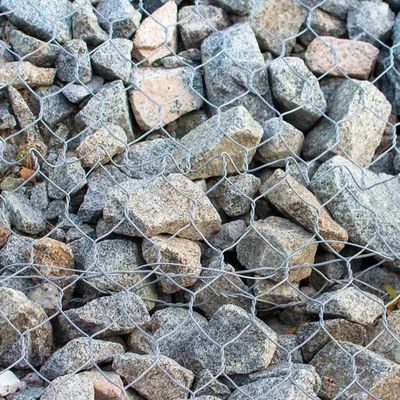

Large Image : 2x1x1 Gabion Box Wall PVC Coated Hot Dipped Galvanized Gabion Netting Rolls

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion box

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 35-45
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Corrosion Resistant, Easy To Install	Product Name:	2x1x1 Gabion Box Wall PVC Coated Hot Dipped Galvanized Gabion Netting Rolls
Key Words:	Gabion Box	Surface Treatment:	Electro Galvanized, Hot-dipped Galvanized, PVC Coated
Material:	Galvanized Steel Wire	Product Aperture:	5050 Mm, 50100 Mm, 75*75 Mm, Etc
Structure:	Hexagonal,Diamond Etc	Mesh Aperture:	7090mm, 80100mm,100120mm, 110130mm
Packing:	Packed In Bundles Or On Pallets	Installation:	Easy To Assemble And Disassemble
Highlight:	PVC coated gabion box , hot dipped galvanized gabion netting , 2x1x1 gabion wall rolls

2x1x1 Gabion Box Wall PVC Coated Hot Dipped Galvanized Gabion Netting Rolls

Gabion Box is a heavy-duty, rectangular wire mesh enclosure engineered from high-strength, twisted hexagonal steel wire with galvanization or PVC coating for superior corrosion resistance. This modular structure features integral dividers that segment the interior into uniform-sized chambers, effectively mitigating stone displacement during installation. Filled with dense natural aggregates, the partitions ensure even stone packing under dynamic stresses, preserving the rigid rectangular form and maximizing container stability. Ideal for erosion control, retaining walls, and slope stabilization, this eco-friendly retention system combines geotechnical durability with flexible installation, offering long-term structural resilience in diverse environmental conditions.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation
Economical - simply fill with stones and seal
Flexible - corrosion resistant and withstands extreme weather
Simple structure requiring no special techniques
Promotes plant growth through silt accumulation, blending with natural environments
Excellent permeability prevents hydrostatic damage, ensuring hillside and beach stability
Foldable design reduces transport costs with on-site assembly

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

Mesh Hole Model	8x10cm		6x8cm
Mesh Hole Model	Galvanized or PVC coated	Galvanized or PVC coated
Length (m)	2.7mm	>245g/m²	2.0mm	>215g/m²
Width (m)	3.4mm	>265g/m²	2.7mm	>245g/m²
Height (m)	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m
