Galvanized And PVC Gabion Stone Box Wire Mesh Gabion Basket For Dam Protection

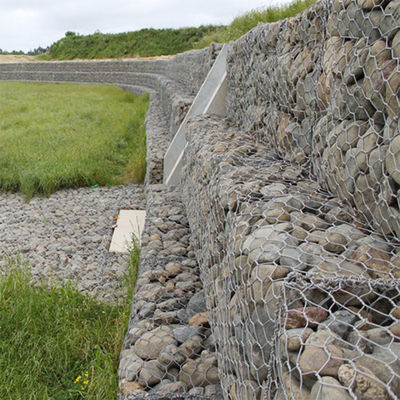

Large Image : Galvanized And PVC Gabion Stone Box Wire Mesh Gabion Basket For Dam Protection

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE ISO
Model Number:	2X1X1 3X1X1 4X1X1 6X2X0.3

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 15-18
Packaging Details:	pallets
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000 pc need 7 days

Contact Now Chat Now

Detailed Product Description

Product Name:	Galvanized And PVC Gabion Box Hexagonal Wire Mesh Gabion Basket And Gabion Mattress For Dam Protection	Key Words:	Gabion Box
Stock:	Have Large Stock	Tensile Strength:	350-550N/mm2
Customized:	Avaliable	Wire Diameter:	2.7mm
Zinc:	>245g/m²	Cage Size:	111m,211m,311m,411m
Net Wire:	Popular 2.7mm	Advantages:	Easy Install, Long Using Life
Season:	Everyday	Twist:	Double Twisting
Highlight:	Galvanized PVC Gabion Stone Box , hexagonal wire mesh gabion basket , Dam Protection Gabion Stone Box

Galvanized And PVC Gabion Stone Box Wire Mesh Gabion Basket For Dam Protection

Galvanized And PVC Gabion Box Hexagonal Wire Mesh Gabion Basket and Gabion Mattress for Dam Protection.

For riverbed scour prevention, woven gabion boxes are configured as apron protections below hydraulic structures. Constructed with marine-grade stainless steel (316L alloy), the units (1.5m x1m x0.3m) anchor to substrate layers via tensile connectors, their open structure allowing turbulence reduction and bedload redistribution. Meets FEMA 516 guidelines for critical infrastructure safeguarding.

How to Choose Gabion Retaining Wall Materials

Select the Appropriate Wire Finish:

Galvanized wire: Appropriate for dry conditions, short periods of water contact, non-submerged applications, and non-corrosive soil/water environments.

Galvanized PVC Coated gabion wire:

Ideal for wet conditions, submerged applications, and corrosive soil/water environments.

Product Introduction

Gabion retaining walls are flexible, wire-mesh structures filled with rocks, stones, or other materials. These retaining walls are designed to control soil erosion, prevent landslides, and manage water flow. They consist of wire mesh cages filled with stones to form a sturdy natural barrier that can withstand soil pressure and water impact.

Product Specifications

Mesh Size: 3" x 3" (square opening) or 60x80mm, 80x100mm, 100x120mm

Hole	Zinc Level	Length	Width	Height	Diameter Mesh Wire	Diameter Edge Wire	Diameter Tie Wire	Diapragm
80 X 100	280	2.0	1.0	1.0	2.70	3.40	2.00	1
81 X 100	280	3.0	1.0	1.0	2.70	3.40	2.00	2
80 X 100	280	1.0	1.0	1.0	2.70	3.40	2.00	0

Dimensions

Length: Customized according to project requirements
Width: Customized according to project requirements
Height: Customized according to project requirements
Wire Diameter: 3mm, 4mm, 5mm
Surface Treatment: Galvanizing, PVC coating

Product Advantages

Durability:

Long service life with corrosion-resistant galvanized or PVC-coated wire mesh.

Flexibility:

Adapts to ground movement without cracking, ideal for erosion-prone or seismic areas.

Permeability:

Porous structure reduces water pressure and prevents water-related damage.

Environmental Friendliness:

Uses natural materials and blends with the environment.

Cost-effectiveness:

Affordable materials and simple construction process.

Aesthetic Appeal:

Natural appearance enhances landscapes with customizable stone options.

Application Fields

Water Conservancy Projects: Embankments, riverbank protection, waterway lining
Environmental Protection: Ecological restoration and soil conservation
Road Protection: Road foundation stabilization
Coastal Protection: Seawalls and port projects
Architectural Decoration: Building exterior decorative elements

Inquiry Requirements

When sending your inquiry, please indicate:

Specific uses: Soil stabilization, mass gravity retaining, rock fall protection or architectural elements
Types and Finishes: Welded gabions or hexagonal twisted gabions
Collapsible or Open Gate structures
Wire Diameter and mesh spacing
Reinforced edge wire or common lacing
Any special requirements

Company Profile

We are one of the largest suppliers of gabion mesh in China, with rich industry experience and strong technical capabilities. Our products are exported worldwide, and we offer both standardized and customized solutions.
