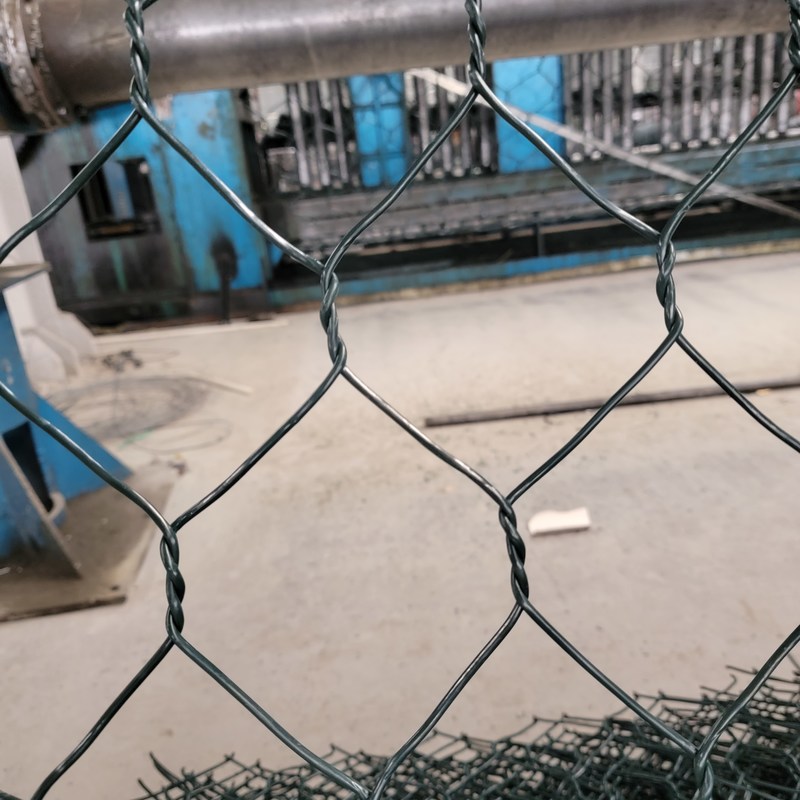

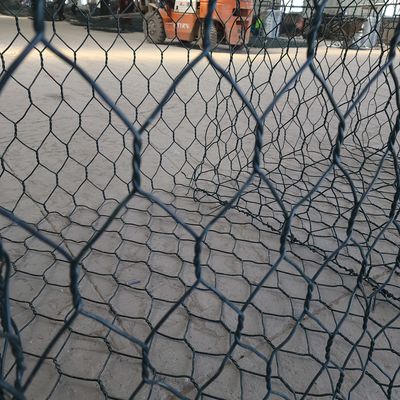

Double Twisted Heavy Hexagonal Gabion Box Wire Netting Retaining Wall For Fencing
10 X 12 cm 3.05mm Gabion Basket and Heavy Hexagonal Gabion Box Wire Netting
Woven Gabion Box designed for hydraulic engineering applications, these rectangular units utilize double-twisted galvanized steel mesh (mesh size 80x100mm, wire diameter 3.0-4.0mm) to create permeable retaining structures in coastal revetments and spillway protection systems.
Their hexagonal weaving pattern enhances structural integrity under hydrodynamic loads, while modular dimensions (3m x1m x0.5m) enable precise alignment in canal lining and slope consolidation projects. The open-grid configuration allows natural vegetation growth for ecological stabilization, meeting ISO 10394 standards for marine environment durability.
How to Choose Gabion Retaining Wall Materials
Select the Appropriate Wire Finish
Galvanized Wire
- Dry conditions
- Subjected to short periods of contact with water
- Not to be submerged below water level
- Used in non corrosive soil & non corrosive water quality applications
Galvanized PVC Coated Gabion Wire
- Wet conditions
- Submerged below water level
- Used in corrosive soil & corrosive water quality applications
Product Introduction
Gabion retaining walls are flexible, wire-mesh structures filled with rocks, stones, or other materials. These retaining walls are designed to control soil erosion, prevent landslides, and manage water flow. They consist of wire mesh cages filled with stones to form a sturdy natural barrier that can withstand soil pressure and water impact.
Product Specifications
Mesh Size: 3" x 3" (square opening) or 60x80mm, 80x100mm, 100x120mm
| Hole |
Zinc Level |
Length |
Width |
Height |
Diameter Mesh Wire |
Diameter Edge Wire |
Diameter Tie Wire |
Diapragm |
| 80 X 100 |
280 |
2.0 |
1.0 |
1.0 |
2.70 |
3.40 |
2.00 |
1 |
| 81 X 100 |
280 |
3.0 |
1.0 |
1.0 |
2.70 |
3.40 |
2.00 |
2 |
| 80 X 100 |
280 |
1.0 |
1.0 |
1.0 |
2.70 |
3.40 |
2.00 |
0 |
Dimensions
- Length: Customized according to project requirements
- Width: Customized according to project requirements
- Height: Customized according to project requirements
- Wire Diameter: 3mm, 4mm, 5mm
- Surface Treatment: Galvanizing, PVC coating
Product Advantages
Durability: Gabion retaining walls have a long service life and can withstand harsh environmental conditions. The wire mesh is usually galvanized or PVC-coated to prevent corrosion, ensuring the wall structure remains stable for many years.
Flexibility: Unlike rigid retaining walls, gabion retaining walls are flexible and can adapt to ground movement without cracking or failing. This makes them ideal for areas prone to soil erosion or seismic activity.
Permeability: The porous nature of gabion retaining walls allows water to pass through, reducing water pressure behind the wall and preventing water-related damage.
Environmental Friendliness: Gabion retaining walls use natural materials and can seamlessly blend with the environment. They can be constructed with locally sourced stones to minimize environmental impact.
Cost-effectiveness: Gabion retaining walls are relatively inexpensive to build and maintain. The materials are affordable, and the construction process is simple, requiring less labor and equipment.
Aesthetic Appeal: Gabion retaining walls have a natural, rustic appearance that can enhance the visual appeal of any landscape. They can be customized with different types and colors of stones to match the surrounding environment.
Application Fields
- Water Conservancy Projects: Used for embankments, riverbank protection, and waterway lining
- Environmental Protection: Ecological restoration and soil conservation
- Road Protection: Protect road foundations, enhancing stability and durability
- Coastal Protection: Used in seawalls and port projects to resist wave erosion
- Architectural Decoration: Decorative elements on building exteriors
Inquiry Requirements
When sending your inquiry, please indicate the following:
- Specific uses: Soil stabilization, mass gravity retaining, rock fall protection or architectural elements
- Types and Finishes: Welded gabions or hexagonal twisted gabions
- Collapsible or Open Gate structures
- Wire Diameter and mesh spacing requirements
- Reinforced edge wire or common lacing
- Any special requirements
Product Images
Company Information
We are one of the largest suppliers of gabion mesh in China, with rich industry experience and strong technical capabilities. Our products are exported to many countries and regions around the world, and we have successfully implemented gabion mesh projects in numerous countries. We not only offer standardized products but can also customize according to specific customer requirements.
Quality Assurance
- Always a pre-production sample before mass production
- Always final Inspection before shipment
Our Products
Gabion Basket, Defensive barrier, Welded Gabion, Razor Wire
Why Choose Us
The company has passed: ISO9001:2015 Quality Management Certification, ISO14001:2015 Environmental Management Certification, OHSAS1800:2007 Occupational Health Certification, EU CE Certification, SGS International Certification
