Custom Galvanized Gabion Box 2X1X1m Wire Mesh Netting 80X100mm For Flood Control
Galvanized Wire 2 X 1 X 1 m Gabion Box Wire Mesh Netting 80 X 100 mm Gabion Basket for Flood Control Project

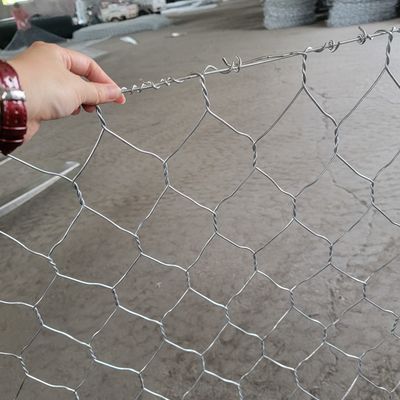

Designed as modular culvert protection systems, these boxes employ hexagonal mesh (wire diameter 4.5mm, double-selvedge construction) to armor embankment transitions. Standard 2m-long trapezoidal units interlock via spiral connectors, creating continuous energy-absorbing surfaces along waterway crossings. Galvanized steel meets BS EN 10244-2 corrosion resistance thresholds for prolonged submersion in alkaline-rich hydraulic conditions.
How to Choose Wire for Gabion Retaining Wall Project
Select the Appropriate Wire Finish
- Galvanized wire: Appropriate for dry conditions, short periods of water contact, non-submerged applications, and non-corrosive soil/water environments
- Galvanized PVC Coated gabion wire: Suitable for wet conditions, submerged applications, and corrosive soil/water environments
Product Introduction
Gabion retaining walls are flexible, wire-mesh structures filled with rocks, stones, or other materials. These retaining walls are designed to control soil erosion, prevent landslides, and manage water flow. They consist of wire mesh cages filled with stones to form a sturdy natural barrier that can withstand soil pressure and water impact.
Product Specifications
Mesh Size: 3" x 3" (square opening) or 60x80mm, 80x100mm, 100x120mm
| Hole |
Zinc Level |
Length |
Width |
Height |
Diameter Mesh Wire |
Diameter Edge Wire |
Diameter Tie Wire |
Diapragm |
| 80 X 100 |
280 |
2.0 |
1.0 |
1.0 |
2.70 |
3.40 |
2.00 |
1 |
| 81 X 100 |
280 |
3.0 |
1.0 |
1.0 |
2.70 |
3.40 |
2.00 |
2 |
| 80 X 100 |
280 |
1.0 |
1.0 |
1.0 |
2.70 |
3.40 |
2.00 |
0 |
Dimensions
Length: Customized according to project requirements
Width: Customized according to project requirements
Height: Customized according to project requirements
Wire Diameter: 3mm, 4mm, 5mm
Surface Treatment: Galvanizing, PVC coating
Product Advantages
Durability: Long service life withstanding harsh conditions; galvanized or PVC-coated wire prevents corrosion
Flexibility: Adapts to ground movement without cracking, ideal for erosion-prone or seismic areas
Permeability: Allows water passage, reducing pressure and preventing water damage
Environmental Friendliness: Uses natural materials, blends with environment, locally sourced stones
Cost-effectiveness: Affordable materials and simple construction process
Aesthetic Appeal: Natural, rustic appearance customizable with different stone types/colors
Application Fields
- Water Conservancy Projects: Embankments, riverbank protection, waterway lining
- Environmental Protection: Ecological restoration and soil conservation
- Road Protection: Road foundation stabilization
- Coastal Protection: Seawalls and port projects against wave erosion
- Architectural Decoration: Building exterior decorative elements
Company Information
We are one of the largest gabion mesh suppliers in China with extensive industry experience and technical capabilities. Our products are exported worldwide, and we offer both standardized and customized solutions.
Company Details
Location: Hebei, China (operating since 2018)
Markets: Africa (30%), Southeast Asia (30%), Domestic (20%), North America (10%), Western Europe (10%)
Employees: 51-100
Quality Guarantee: Pre-production samples and final inspection before shipment
Product Range: Gabion Basket, Defensive barrier, Welded Gabion, Razor Wire
Certifications: ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007, EU CE, SGS International
Services:
Delivery Terms: FOB, CFR, CIF, EXW
Payment: USD, EUR, CNY via T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
