HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls
HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls

Large Image :  HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-gabion box
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 35-50
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day
Contact Now Chat Now
Detailed Product Description
Highlight:

hdp galvanized gabion boxes

,

galvanized gabion boxes 5.0mm

,

hdp galvanised gabion boxes

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls

Galvanized Welded Mesh Gabion Box for sustainable water management and erosion control solutions. The permeable design allows for effective water drainage, helping to prevent flooding and waterlogging in various applications.

Key Features
  • Sustainable Water Management: Ideal for rain gardens and stormwater management systems
  • Permeable Design: Allows effective water drainage while preventing soil erosion
  • Durable Construction: Made from high-quality galvanized steel wire
  • Customizable Sizes: Available in standard and bespoke dimensions
Material Specifications
Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter 3 mm-6 mm
Aperture 50×50 mm, 50×100 mm etc
Finish Hot Dipped Galvanized; Heavy Zinc Coating; Galfan Coating; PVC Coated
Standard Sizes and Capacities
Normal Box Size (cm) Diaphragms Capacity (m³) Mesh Size (mm)
100×30×30 None 0.09 50×50 or 100×50
100×50×30 None 0.15
100×100×50 None 0.5
100×100×100 None 1
150×100×50 1 0.75
150×100×100 1 1.5
200×100×50 1 1
200×100×100 1 2

Other sizes can be customized to meet specific project requirements.

Technical Specifications
  • Fabric Type: Galvanized welded mesh
  • Tensile Strength (wire): 540 to 770 N/mm²
  • Weld Strength: 75% of the minimum ultimate tensile strength of the wire
  • Available wire thicknesses: 3.0mm, 4.0mm, 5.0mm
  • Mesh Aperture: 75×75mm, 50×50mm, 50×100mm, 50×200mm
  • Standard basket lengths: 1000mm, 1500mm or 2000mm, 500mm etc
  • Standard basket widths: 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm
  • Standard basket heights: 500mm, 1000mm
Applications
HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 0

Retaining Walls: Stabilizing slopes and preventing soil erosion in residential and commercial projects.

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 1

Erosion Control: Protecting riverbanks and coastlines with stable, permeable structures.

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 2

Flood Protection: Creating effective barriers against floodwaters and excessive rainfall.

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 3

Landscaping Features: Decorative garden walls, seating areas, and planters with functional appeal.

Additional Resources
HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 4

Link Accessories

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 5

Connection Details

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 6

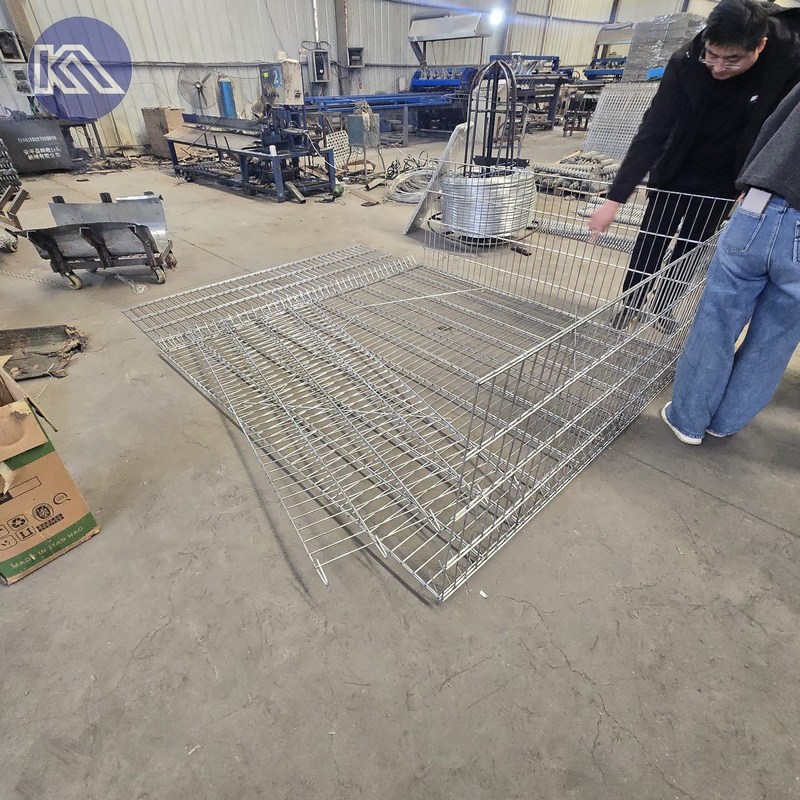

Workshop Production

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 7

Package and Loading

HDP Galvanized Gabion Boxes 5.0mm Thickness Welded Retaining Walls 8

Shipping Preparation
