Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance

Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance
Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance

Large Image :  Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-gabion box
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 15-18
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day
Contact Now Chat Now
Detailed Product Description
Product Name: Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance Key Words: Gabion Box
Cage Size: 1*1*1M, 1*1*2M,1*1*3M /2*1*1*0.5 Product Wire Material: Hot Dip Galvanized, Galfan Coated
Aperture: 80*100mm Zinc Coating: 275-300g/m2
Mesh: Hexagonal Shape Hole Size: 6x8cm, 8x10cm
Mesh Hole: 80*100mm Weaving Type: Double Twist
Highlight:

1*1*1m gabion box

,

1*1*1m gabion basket

,

hexagonal gabion box

Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance
Woven Gabion Box for Hydraulic Engineering

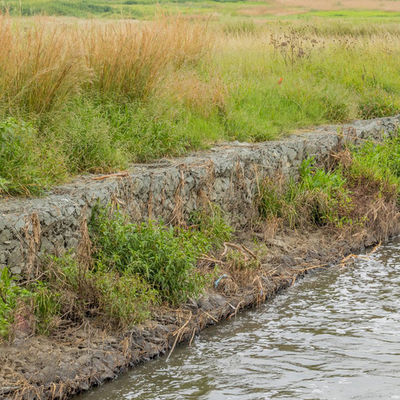

Designed for critical water management projects, our heavy-duty woven gabion boxes feature double-twisted hexagonal steel mesh (3.0-4.0mm wire) with hot-dip galvanized or PVC coating for superior corrosion resistance. The 80×100mm mesh structure provides optimal stone retention while maintaining 95%+ permeability, effectively reducing flow velocity by 40-60%. Ideal for riverbank stabilization, flood control systems, and coastal protection works. Flexible yet durable construction accommodates ground movement while withstanding 5m/s water currents. Certified to EN 10223-3 standards with 30+ year lifespan. Custom sizes available for large-scale hydraulic applications.
Key Features
  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
Technical Advantages
  • 3x Lifespan: 50-100 years corrosion resistance
  • Load Capacity: Up to 50kN/m² vertical pressure
  • Eco-Friendly: 100% recyclable materials with zero chemical runoff
  • Modular Assembly: Interlocking panels for 70% faster installation
Applications
  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention
Customization Services
  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
Gabion Specifications
Mesh hole model
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter 3.4mm >265g/m² Side wire diameter 2.7mm >245g/m²
4 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
6 1 1
Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance 0
