Woven Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier

Woven Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier
Woven Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier

Large Image :  Woven Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-gabion box
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 15-18
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day
Contact Now Chat Now
Detailed Product Description
Feature: Corrosion Resistance Hole Size: Customized
Zinc Coating: 240-290g/m2 Cage Size: 1*1*1M, 1*1*2M,1*1*3M
Pvc Coating: 0.5mm-1.5mm Product Wire Material: Hot Dip Galvanized, Galfan Coated
Wire Diameter: 2.7mm Aperture: 1mm-100mm
Gabion Box Size: 2x1x0.5m, 2x1x1m, 3x1x0.5m, 4x1x0.2 Wire Diamater: 3mm~6mm Or Custom
Product Name: Woven Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier Key Words: Gabion Box
Highlight:

galvanized gabion box

,

galvanized gabion basket

,

1*1*1m gabion box

Woven Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier

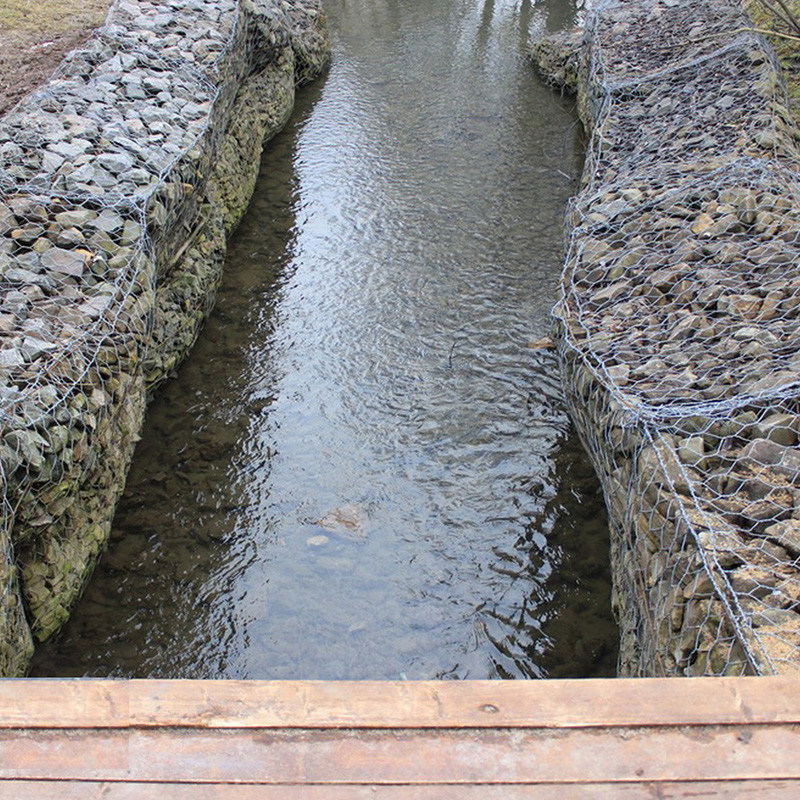

Our heavy-duty woven gabion cages feature double-twisted hexagonal steel mesh (3.0-4.0mm wire) with hot-dip galvanized or PVC coating for superior corrosion resistance in water environments. The 80×100mm mesh structure provides optimal stone retention while maintaining 95%+ permeability, effectively reducing flow velocity by 40-60%. Ideal for riverbank stabilization, flood control systems, and coastal protection works. Flexible yet durable construction accommodates ground movement while withstanding 5m/s water currents. Certified to EN 10223-3 standards with 30+ year lifespan. Custom sizes available for large-scale hydraulic applications requiring reliable, eco-friendly solutions.
Key Features
  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
Technical Advantages
  • 3x Lifespan: 50-100 years corrosion resistance
  • Load Capacity: Up to 50kN/m² vertical pressure
  • Eco-Friendly: 100% recyclable materials with zero chemical runoff
  • Modular Assembly: Interlocking panels for 70% faster installation
Applications
  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention
Customization Services
  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
Gabion Specifications
Mesh Hole Model 8x10cm 6x8cm
Galvanized or PVC coated Galvanized or PVC coated
Length(m) Width(m) Height(m) 2.7mm >245g/m² 2.0mm >215g/m²
2 1 1 3.4mm >265g/m² 2.7mm >245g/m²
3 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
4 1 1
6 1 1
Woven Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier 0
