Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining

Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining

Large Image :  Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining

Product Details:
Place of Origin: China
Brand Name: KN
Certification: CE, ISO, COC,BESC
Model Number: KN-18177
Payment & Shipping Terms:
Minimum Order Quantity: 800 set
Price: Negotiate
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1/40HQ per week
Contact Now Chat Now
Detailed Product Description
Features: Flexible, Corrosion Resistant, Easy To Install Installation Method: On-site Assembly
Key Words: Welded Gabion Fence Surface Treatment: Hot-dip Galvanized
Certificated: CE,ISO Feature: Corrosion Resistance ,etc.
Spiral Pitch: 120mm Material: Galvanized Steel Wire
Usage: Retaining Wall Key Word: Welded Gabion Mesh
Aperture: 50×50mm, 50×100mm, 100×100mm Box Size: 2x1x1m, 3x1x1m, 2x0.5x1m, 2x0.3x1m
Wire Diameter: From 3.0 - 6.0mm Zinc Coating: 30g - 240g/m2
Highlight:

Hot Dip Galvanized Welded Gabion Mesh

,

Landscape Retaining Welded Gabion Mesh

,

Welded Gabion Mesh erosion control

Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining
Galvanized Welded Gabion Mesh for Retaining Walls and Erosion Control. A versatile solution combining style and functionality for garden borders, benches, or garden beds.
Product Specifications
Attribute Value
Installation Method On-site assembly
Surface Treatment Hot-dip galvanized
Certifications CE, ISO
Material Galvanized steel wire
Wire Diameter 3.0 - 6.0mm
Zinc Coating 30g - 240g/m²
Aperture 50×50mm, 50×100mm, 100×100mm
Box Size 2x1x1m, 3x1x1m, 2x0.5x1m, 2x0.3x1m
Features Flexible, corrosion resistant, easy to install
Installation Guide
  • Secure the bottom and sides of gabion with clips provided.
  • Use lightweight AAC block, polystyrene, or similar material positioned inside the gabion where it cannot be seen once filled. Then fill around with chosen stones or pebbles (minimum 50mm size).
  • Secure gabion top with clips provided once filled.
Standard Sizes
Normal Box Size (cm) Diaphragms Capacity (m³) Mesh Size (mm)
100x30x30 None 0.09 50×50 or 100×50
100x50x30 None 0.15
100x100x50 None 0.5
100x100x100 None 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
Other sizes can be customized.
Applications
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 0

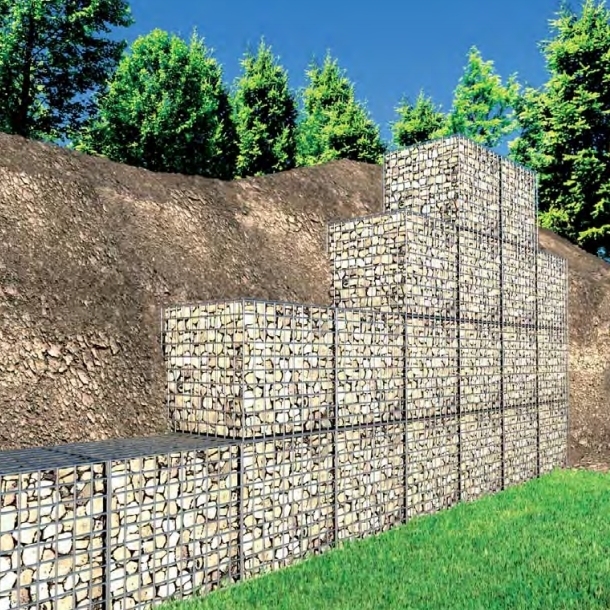

Retaining Walls
Stabilizing slopes, preventing soil erosion, and supporting embankments.
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 1
Erosion Control
Effective along riverbanks, coastlines, and steep slopes.
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 2
Flood Protection
Creating flood barriers or levees to protect vulnerable areas.
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 3

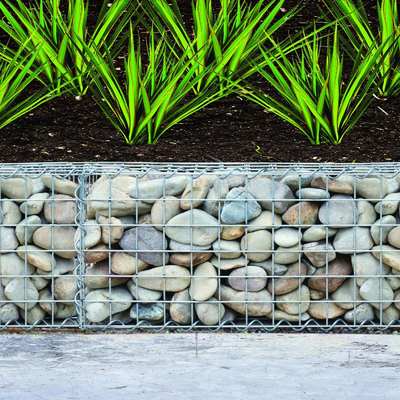

Landscaping
Creating decorative garden walls, seating areas, and planters.
Technical Specifications
  • Fabric Type: Galvanized welded mesh
  • Tensile Strength (wire): 540 to 770 N/mm²
  • Weld Strength: 75% of the minimum ultimate tensile strength of the wire
  • Available wire thicknesses: 3.0mm, 4.0mm, 5.0mm
  • Mesh Aperture: 75x75mm, 50x50mm, 50x100mm, 50x200mm
  • Standard basket lengths: 1000mm, 1500mm or 2000mm, 500mm etc
  • Standard basket widths: 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm
  • Standard basket heights: 500mm, 1000mm
  • Bespoke Sizes: Available
Product Gallery
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 4
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 5
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 6
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 7
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 8
Hot Dip Galvanized Welded Gabion Mesh For Garden Landscape Retaining 9
