Galvanized Welded Gabion Basket Mesh 1x1x1m for Retaining Walls

Large Image : Galvanized Welded Gabion Basket Mesh 1x1x1m for Retaining Walls

Product Details:

Place of Origin:	Hebei,China
Brand Name:	KN
Certification:	ISO CE
Model Number:	KN-W03

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	USD 16.88-USD 26.89
Packaging Details:	Wooden pallet
Delivery Time:	7-15days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 pcs/ week

Contact Now Chat Now

Detailed Product Description

Product Name:	Welded Basket Cage	Materil:	Steel Wire
Mesh Hole:	5050mm/7575mm/100*100mm...	Wire Diameter:	4mm,5mm...
Gabion Size:	111m, 210.3m. Customized Sizes	Key Words:	Welded Gabion Stone Cage Supplier
Highlight:	Galvanized gabion basket mesh , Welded gabion cage 1x1x1m , Gabion baskets for retaining walls

Galvanized Welded Gabion Basket Mesh 1x1x1m for Retaining Walls

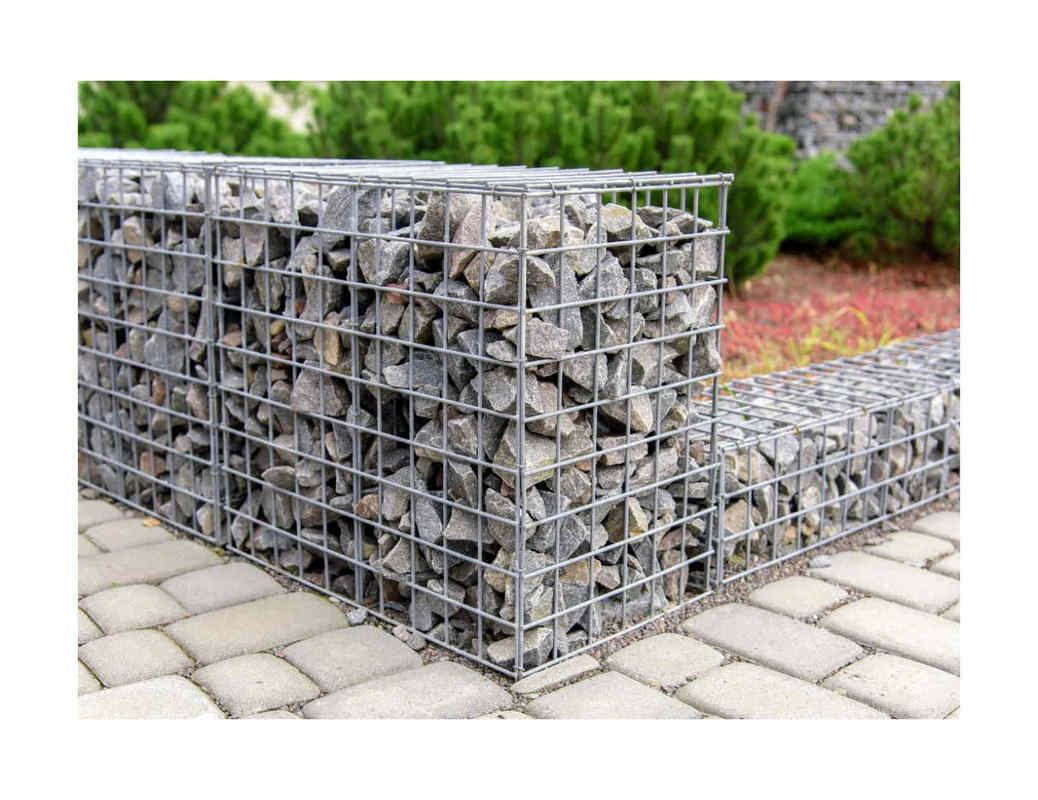

Our welded gabion stone baskets are constructed from high-quality welded wire mesh panels, assembled with spiral-shaped binding wire to create durable retaining structures. Each unit is delivered as a folded, independent assembly ready for quick installation.

Product Attributes

Attribute	Value
Product name	Welded basket cage
Material	Steel wire
Mesh hole	50×50mm, 75×75mm, 100×100mm (customizable)

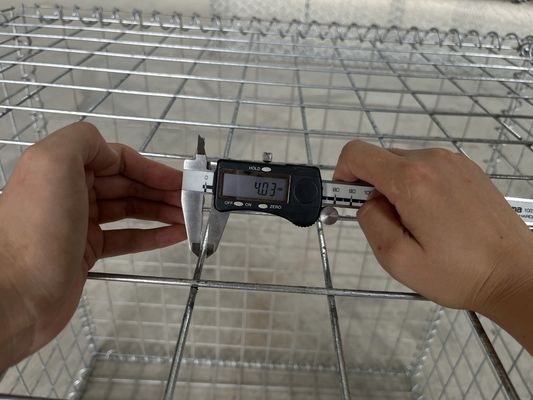

Wire diameter	4mm, 5mm (customizable)
Gabion size	1×1×1m, 2×1×0.3m (custom sizes available)

Key Specifications

Specification	Options
Wire diameter	3.5mm, 4mm, 4.5mm, 5mm
Aperture sizes	50×50mm, 76.2×76.2mm, 80×80mm, 100×100mm
Standard sizes	2.0×1.0×1.0m, 2.0×1.0×0.5m, 2.0×0.5×0.5m, 2.0×0.3×0.3m (customizable)
Surface treatment	Hot-dipped galvanized or PVC coated

Available Configurations

Basket sizes: 1×1×1m, 2×1×1m, 2×1×0.5m, etc.
Hole sizes: 50×50mm, 75×75mm, 50×100mm, 100×100mm
Wire options: 3.5mm, 4mm, 4.5mm, 5mm diameter
Material choices: Hot-dip galvanized wire, Galfan wire, or galvanized after welding
