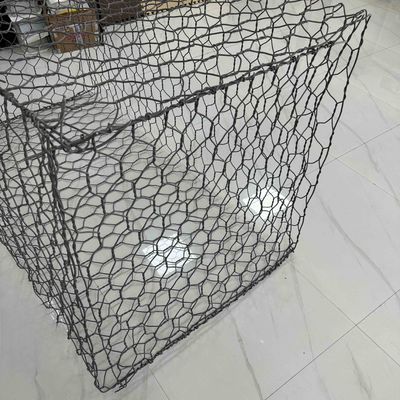

Galvanized 2x1x1m Gabion Mesh Cage Hexagonal Gabion Cages for Seawall Protection

Large Image : Galvanized 2x1x1m Gabion Mesh Cage Hexagonal Gabion Cages for Seawall Protection

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion cages

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pc
Price:	USD 35-49
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Galvanized Seawall Protection Used Hexagonal Gabion Wall/ Gabion Cages	Key Word:	Gabion Basket
Mesh Size:	60mmx80mm, 80mmx100mm, 100mmx120mm	Wicth:	1m 1.2m 1.5m 1.8m 2m Etc
Zinc Coating:	240-275g/m2	Process:	Woven Mesh
Assembly:	Easily Assembled	Edge Wire Diameter:	3.0-4.0mm
Feature:	Corrosion Resistance	Customization:	Available Upon Request
Apertuar:	60x80,80x100,100x120	Finish:	Hot Dipped Galvanized, Or Galfan Coated
Highlight:	Seawall Protection gabion cages , Hexagonal seawall gabions , 2x1x1m gabion cages

Galvanized 2x1x1m Gabion Mesh Cage Hexagonal Gabion Cages for Seawall Protection

Galvanized hexagonal gabion cages provide durable and sustainable seawall protection. These corrosion-resistant structures are ideal for coastal defense and erosion control applications.

Product Specifications

Attribute	Value
Product Name	Galvanized Seawall Protection Used Hexagonal Gabion Wall/Gabion Cages
Mesh Size	60mmx80mm, 80mmx100mm, 100mmx120mm
Width	1m, 1.2m, 1.5m, 1.8m, 2m, etc.
Zinc Coating	240-275g/m²
Process	Woven Mesh
Edge Wire Diameter	3.0-4.0mm
Finish	Hot dipped galvanized, or Galfan coated

Product Description

These gabion structures are crafted from durable, corrosion-resistant wire mesh and filled with locally sourced stones or aggregates, creating robust and flexible barriers that withstand natural forces. The hexagonal design provides added strength and stability, adapting to various terrain conditions.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)

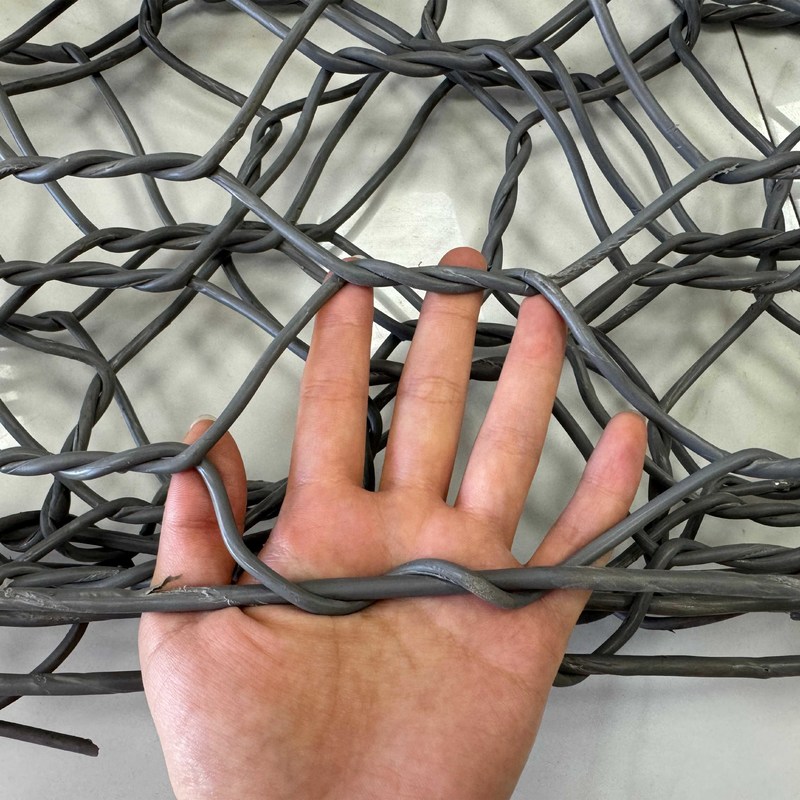

Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Product Advantages

Superior Strength: Heavy-duty double-twisted steel mesh withstands hydraulic pressure

Excellent Flexibility: Adapts to ground settlement without structural damage

High Permeability: 95% water flow reduces hydrostatic pressure

Long Service Life: Corrosion-resistant coating ensures 30+ year durability

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Technical Specifications

Dimensions (LxWxH)	8x10cm Mesh	6x8cm Mesh
2x1x1m	2.7mm \| >245g/m²	2.0mm \| >215g/m²
3x1x1m	3.4mm \| >265g/m²	2.7mm \| >245g/m²
4x1x1m	Binding wire diameter of 2.7mm	Binding wire diameter of 2.0mm

Tag:

galvanized gabion box,

gabion wall mesh,

rock cage retaining wall
