River Bank Protection Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box

Large Image : River Bank Protection Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box

Product Details:

Place of Origin:	CHINA
Brand Name:	KN
Certification:	ISO CE
Model Number:	1X1X1 2x1xx 3x1x1

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 17-20
Packaging Details:	pallets
Delivery Time:	7-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000mw per day

Contact Now Chat Now

Detailed Product Description

Surface Treatment:	Hot-dipped Galvanized	Zinc Coating:	≥ 270g/m²
Size:	2m X 1m X 1m	Application:	Erosion Control, Retaining Walls, Landscaping
Elongation:	≥ 10%	Wire Diameter:	3.05mm
Product_Name:	Gabion Cages	Material:	Galvanized Steel Wire
Durability:	Long-lasting	Tensile Strength:	350-500N/mm²
Mesh Size:	80mm X 100mm 100x120mm	Installation:	Easy And Quick
Connectors:	Binding Lacing Wire	Assembly Method:	Binding Wire
Package:	Pallet Or In Bulk
Highlight:	galvanized rock cage woven , flood stone gabion box , galvanized stone gabion box

River Bank Protection Galvanized Rock Cage Woven Hexagonal Flood Stone Gabion Box

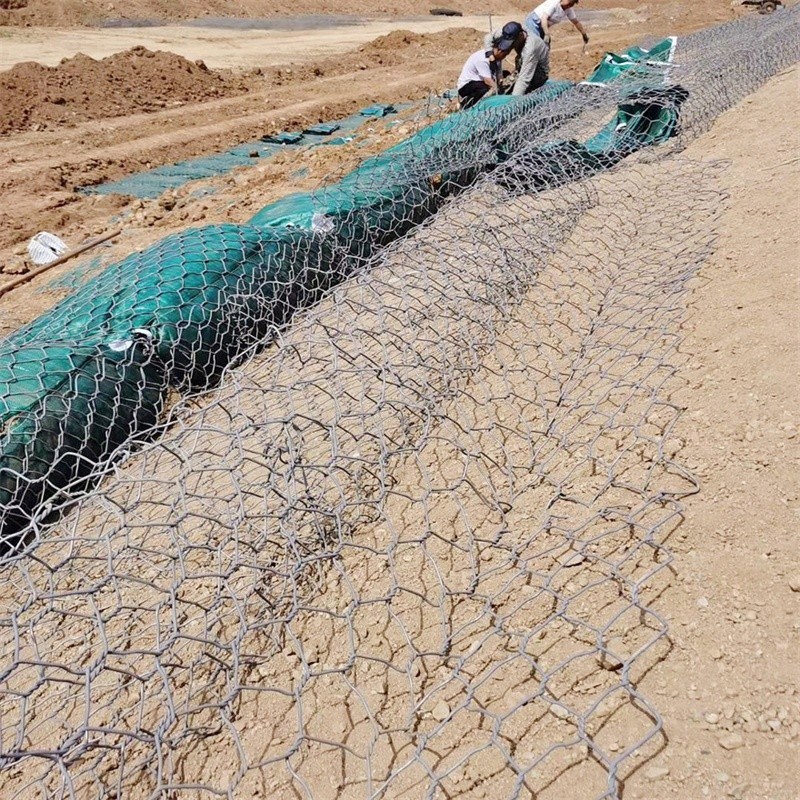

Engineered for hydraulic applications, these galvanized steel wire mesh structures provide permeable erosion control in riverbank stabilization and flood mitigation systems. Their flexible construction accommodates ground movement while maintaining channel integrity, with 80-100mm mesh openings optimized for stone retention and hydraulic pressure dissipation.

Standard units (2m x1m x1m) facilitate rapid assembly in watercourse rehabilitation projects, complying with ASTM A975-20 specifications for submerged installations.

Key Features

Economical installation - simply fill with stones and seal
Easy construction requiring no special techniques
Exceptional resistance to natural damage, erosion, and adverse weather
Withstands large-scale deformation without collapsing
Silt accumulation promotes plant growth for natural integration
Excellent permeability prevents hydrostatic pressure damage
Space-saving transport - folds flat for efficient shipping
Rapid parallel construction ideal for tight deadlines

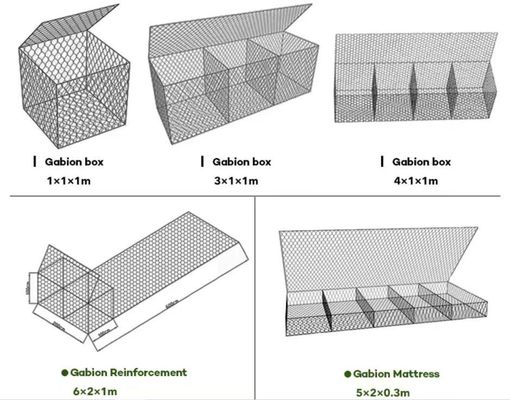

Product Specifications

Size	Wire Diameter	Diaphragm	Length	Width	Height	Surface Area	Color	Surface Treatment
6080mm 80100mm 80110mm 100120mm 120*150mm	2.0-4.0mm (2.2mm, 2.7mm, 3.0mm, 3.05mm common)	1	2m	1m	0.5m	7.5㎡	Silver Dark Green Gray Black	Hot dip galvanized PVC coated PE coated Galfan
		1	2m	1m	1m	11㎡
		2	3m	1m	0.5m	10.5㎡

Applications

This innovative material structure is widely used in transportation, water conservancy, municipal engineering, landscaping, and soil/water conservation projects. Product varieties include:
