2.0x1.0x1.0 Wire Gabion Mesh Cage For Rocks Normal Twisted PVC Gabion Box

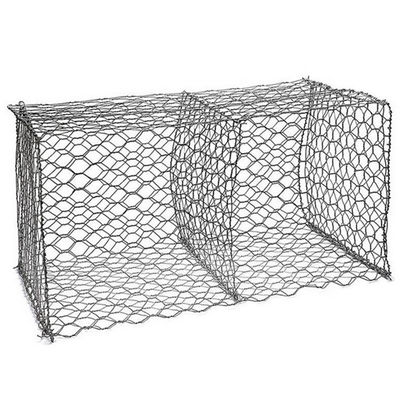

Large Image : 2.0x1.0x1.0 Wire Gabion Mesh Cage For Rocks Normal Twisted PVC Gabion Box

Product Details:

Place of Origin:	CHINA
Brand Name:	KN
Certification:	ISO CE
Model Number:	1X1X1

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 17-20
Packaging Details:	pallets
Delivery Time:	7-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000mw per day

Contact Now Chat Now

Detailed Product Description

Surface Treatment:	Hot-dipped Galvanized	Zinc Coating:	≥ 270g/m²
Size:	2m X 1m X 1m	Application:	Erosion Control, Retaining Walls, Landscaping
Elongation:	≥ 10%	Wire Diameter:	3.05mm
Product_Name:	Gabion Cages	Material:	Galvanized Steel Wire
Durability:	Long-lasting	Tensile Strength:	350-500N/mm²
Mesh Size:	80mm X 100mm 100x120mm	Installation:	Easy And Quick
Connectors:	Binding Lacing Wire	Assembly Method:	Binding Wire
Package:	Pallet Or In Bulk
Highlight:	2.0x1.0x1.0 Gabion Mesh Cage , Normal Twisted PVC Gabion Box , galvanized mesh cages for rocks

2.0x1.0x1.0 Wire Gabion Mesh Cage For Rocks Normal Twisted PVC Gabion Box

Gabion boxes, also known as gabion cages, are innovative ecological grid structures widely used in water conservation, transportation infrastructure, and embankment protection projects. These structures effectively combine engineering functionality with environmental harmony, offering superior performance compared to traditional rigid solutions.

Key Features

Cost-effective solution - simply fill with stones and seal
Simple installation requiring no specialized techniques
Exceptional resistance to natural damage, erosion, and harsh weather
Maintains structural integrity under significant deformation
Promotes vegetation growth through silt accumulation between stones
Excellent permeability prevents hydrostatic pressure damage
Space-saving transport - folds flat and assembles on-site
Enables rapid parallel construction for time-sensitive projects

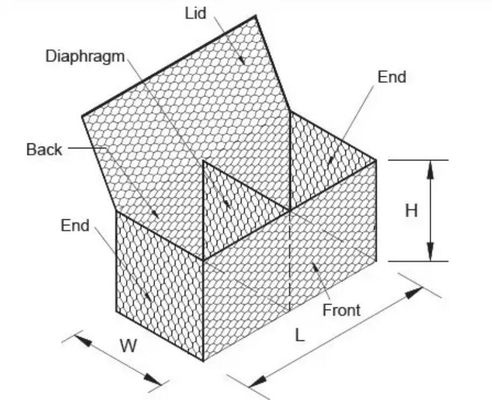

Technical Specifications

Size	Wire Diameter	Diaphragm	Length	Width	Height	Area	Color	Surface Treatment
6080mm - 120150mm	2.0-4.0mm (common: 2.2mm, 2.7mm, 3.0mm, 3.05mm)	1	2m	1m	0.5m	7.5㎡	Silver, Dark, Green, Gray, Black	Hot dip galvanized, PVC coated, PE coated, Galfan
		1	2m	1m	1m	11㎡
		2	3m	1m	0.5m	10.5㎡
		2	3m	1m	1m	16㎡
		3	4m	1m	0.5m	14.5㎡
		3	4m	1m	1m	21㎡

These versatile structures are applied across multiple engineering disciplines including transportation, water conservation, municipal works, landscaping, and soil erosion control. Product variations are tailored for specific applications such as road reinforcement, landscape design, retaining walls, bridge protection, and coastal defense.

Packaging Options

We provide secure, environmentally friendly packaging solutions:

30-100 sets bundled together with protective plastic film
Nude packaging option available
Wooden tray delivery (approximately 1 ton capacity per tray)

Environmental Benefits

Gabion walls provide significant ecological advantages in water management and environmental protection:

Water Filtration and Purification

Natural filtration through stone matrix traps sediments and pollutants
Permeable structure reduces surface runoff and enhances groundwater recharge
Supports vegetation growth for additional filtration through root systems

Additional Ecological Advantages

Superior erosion control for slopes, riverbanks, and shorelines
Creates microhabitats that enhance local biodiversity
Sustainable construction using local or recycled materials minimizes carbon footprint

Gabion walls represent an optimal solution for sustainable infrastructure development, combining structural performance with environmental stewardship.
