1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket

1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket
1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket 1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket

Large Image :  1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket

Product Details:
Place of Origin: CHINA
Brand Name: KN
Certification: ISO CE
Model Number: 1X1X1
Payment & Shipping Terms:
Minimum Order Quantity: 100pc
Price: USD 17-20
Packaging Details: pallets
Delivery Time: 7-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000mw per day
Contact Now Chat Now
Detailed Product Description
Surface Treatment: Hot-dipped Galvanized Zinc Coating: ≥ 240g/m²
Size: 1m X 1m X 1m Application: Erosion Control, Retaining Walls, Landscaping
Elongation: ≥ 10% Wire Diameter: 3.0mm
Product_Name: Gabion Cages Material: Galvanized Steel Wire
Durability: Long-lasting Tensile Strength: 350-500N/mm²
Mesh Size: 80mm X 100mm 100x120mm Installation: Easy And Quick
Connectors: Binding Lacing Wire Assembly Method: Spiral Binding
Package: Pallet Or In Bulk
Highlight:

1x1x1m gabion basket

,

1x1x1m metal cage stone walls

,

galvanized gabion basket

1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket

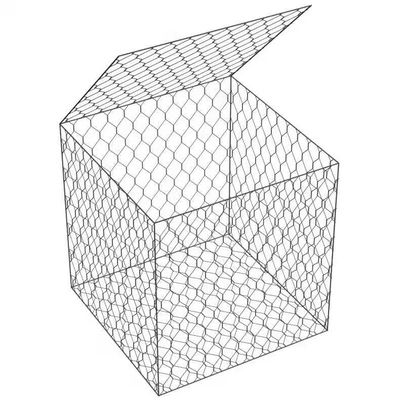

Gabion box, also known as gabion cages, is a new type of ecological grid structure successfully applied in water conservancy engineering, highway, railway engineering, and embankment protection projects. The organic combination of engineering structure and ecological environment has been well achieved. Compared with traditional rigid structures, it offers unique advantages and has become the preferred structural form for protecting riverbeds, controlling landslides, preventing mudslides, preventing rockfalls, and environmental protection worldwide.
Key Features
  • Economical - Simply fill with stones and seal
  • Easy construction requiring no special techniques
  • Strong resistance to natural damage, erosion, and adverse weather
  • Can withstand large-scale deformation without collapsing
  • Silt between stones promotes plant growth and natural integration
  • Excellent permeability prevents hydrostatic pressure damage
  • Transport-efficient - Foldable for shipping and assembled on-site
  • Fast installation enables parallel construction for urgent projects
Product Parameters
Size Wire Diameter Diaphragm Length Width Height Sqm Color Surface Treatment
60*80mm 80*100mm 80*110mm 100*120mm 120*150mm 2.0-4.0mm (2.2mm, 2.7mm, 3.0mm, 3.05mm common) 1 2m 1m 0.5m 7.5㎡ Silver, Dark, Green, Gray, Black Hot dip galvanized, PVC coated, PE coated, Galfan
1 2m 1m 1m 11㎡
2 3m 1m 0.5m 10.5㎡
3 4m 1m 1m 21㎡
This innovative material structure is applied to transportation, water conservancy, municipal engineering, landscaping, and soil/water conservation projects. Product varieties include gabion nets for roads, alloy mesh bags, landscape design elements, retaining walls, bridge protection, coastal defense, and embankment/river protection.
Packaging Options
  • 30-100 sets per bundle, wrapped in quality plastic film
  • Nude package option available
  • Wooden tray delivery (approximately 1 ton per tray)
Environmental Benefits
  • Use of Natural and Recycled Materials
    Utilizes locally sourced natural stones with minimal processing and can incorporate recycled construction materials, reducing waste and carbon footprint.
  • Erosion Control and Soil Stabilization
    Stabilizes slopes and shorelines while allowing water permeability to reduce runoff and promote groundwater recharge.
  • Low Carbon Footprint and Energy Efficiency
    Local material sourcing minimizes transportation emissions, and installation requires less energy than traditional structures.
  • Enhancing Biodiversity
    Stone gaps create habitats for wildlife and plants while blending naturally with the environment.
  • Durability and Longevity
    Withstands harsh conditions with minimal maintenance, providing long-term stability.
1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket 0 1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket 1 1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket 2 1x1x1m Galvanized Iron Wire Mesh Metal Cage Stone Walls With Plain Weave Stone Cage Net Gabion Basket 3
