PVC Coated Hexagonal Gabion Mattress Gabion Stone Cages Customized Size

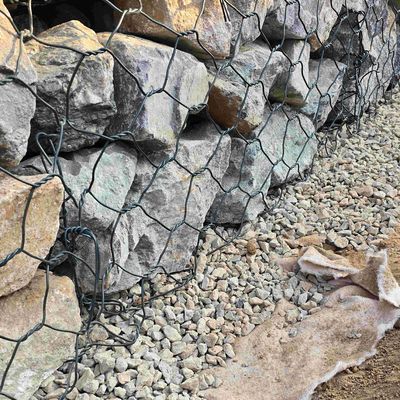

Large Image : PVC Coated Hexagonal Gabion Mattress Gabion Stone Cages Customized Size

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE, ISO, COC,BESC
Model Number:	KNG01

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD 17-20
Packaging Details:	pallet or bundle
Delivery Time:	7
Payment Terms:	L/C,Western Union,MoneyGram,T/T
Supply Ability:	1 40-foot high containers in 7 days

Contact Now Chat Now

Detailed Product Description

Product Name:	Gabion Basket PVC Coated Hexagonal Gabion Mattress Stone Gabion Cage For Sale	Key Word:	Gabion Cages
Material:	Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire	Hole Shape:	Hexagonal, Double Twist
Wire Gauge:	2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm	Application:	Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Type:	Hexagonal Wire Mesh, Double Twist	Aperture:	80100mm,100120mm,60*80mm,etc,
Surface Treatment:	Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated	Product Name:	Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Color:	Green,black,	Packing:	Pallet,Bundle
Highlight:	PVC Coated Hexagonal Gabion Mattress , PVC Coated Gabion Stone Cages , Gabion Stone Cages Customized Size

PVC Coated Hexagonal Gabion Mattress Gabion Stone Cages Customized Size

Manufactured from Galfan-coated steel wire (Zn-5%Al-MM alloy, 4.1mm diameter), this woven gabion cage (2.4m x1m x0.6m) utilizes 100x120mm hexagonal mesh for scour protection at bridge abutments. Units incorporate vertical and horizontal reinforcement wires (5.5mm) at 800mm spacing, with welded corner brackets (3mm thickness) to maintain geometry under hydraulic loading. Zinc-aluminum spiral connectors (5.2mm diameter) secure adjacent cages, filled with 150-300mm limestone aggregate. Compliant with ISO 10356 for dynamic water environments, with optional corrugated PVC-coated internal partitions (0.8mm) for stratified stone placement in high-sediment riverbeds.

Common Gabion Basket Sizes

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	1	0	1
2	1	1	1	2
3	1	1	2	3
4	1	1	3	4
5	1	1	4	5
6	1	1	5	6

Other sizes available as customized orders

Gabion Mattress Sizes

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	0.3/0.5	0	0.3/0.5
2	1	0.3/0.5	1	0.6/1
3	1	0.3/0.5	2	0.9/1.5
4	1	0.3/0.5	3	1.2/2
5	2	0.3/0.5	4	3/5
6	2	0.3/0.5	5	3.6/6

Other sizes available as customized orders

Product Applications

Erosion Control: Stabilizes slopes and riverbanks, preventing soil erosion while allowing proper water drainage.
Retaining Walls: Constructs durable, natural-looking walls for residential and commercial landscapes.
Flood Protection: Forms barriers to divert water flow and protect infrastructure from flood damage.
Coastal Defense: Stabilizes shorelines against wave action and prevents beach erosion.
Road Embankments: Reinforces transportation routes by retaining soil and preventing landslides.
Bridge Construction: Strengthens abutments and foundations for enhanced structural integrity.

Technical Specifications

Parameter	Description	Typical Value / Range
Material	Base material	HDP/Galvanized Wire, PVC Wire
Coating	Surface treatment	Galvanized, HDP Galvanized, PVC Coated
Wire Diameter	Wire thickness	Mesh Wire: 2.0~3.05mm, Selvage Wire: 2.4~4.0mm, Tie Wire: 2.0~2.4mm
Mesh Opening Size	Opening dimensions	60×80mm, 80×100mm, 100×120mm, 120×150mm
Overall Dimensions	Standard sizes	Gabion Roll Width: 1~4m, Gabion Basket: 1×1×1m to 6×1×1m
Lifespan	Service life	6~20 years (environment dependent)
