Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof

Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof
Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof

Large Image :  Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-gabion cage
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 17-20
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day
Contact Now Chat Now
Detailed Product Description
Features: Durable, Flexible, Easy To Install Application: Erosion Control, Retaining Walls, River Bank Protection, Landscaping
Surface Treatment: Hot-dipped Galvanized, PVC Coated Mesh Size: 60x80mm, 80x100mm, 100x120mm
Size: 1x1x1m, 2x1x1m, 3x1x1m, 4x1x1m Wire Diameter: 2.0-4.0mm
Material: Galvanized Steel Wire Edge Wire: 3.4mm
Product Name: Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof Key Words: Gabion Cage
Highlight:

woven gabion cages

,

woven gabion basket

,

rockfall gabion cages

Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof
Professional Woven Gabion Cages for Hydraulic Protection

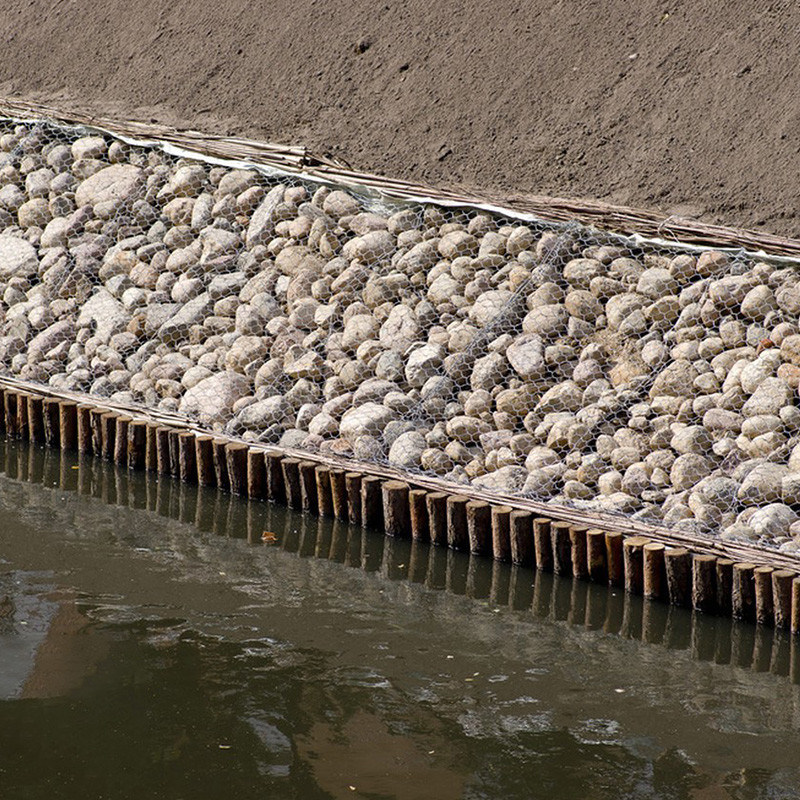

Specially designed for demanding water projects, our heavy-duty gabion cages feature reinforced double-twist hexagonal mesh construction with 3.0-4.5mm Class A galvanized steel wire (245g/m² coating). The optimized 80×100mm mesh geometry provides superior stone retention capacity while achieving 95% hydraulic permeability - effectively reducing flow velocity by 40-60%. Critical applications include river training works, dam face protection, and coastal revetments. Engineered to withstand 5m/s water velocity and accommodate 3% ground settlement. Includes internal diaphragms for structural integrity in large installations. Complies with international water engineering standards (EN 10223-3, ASTM A975). Custom fabrication available for specialized hydraulic requirements.
Key Features
  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
Technical Advantages
  • 3x Lifespan: 50-100 years corrosion resistance
  • Load Capacity: Up to 50kN/m² vertical pressure
  • Eco-Friendly: 100% recyclable materials with zero chemical runoff
  • Modular Assembly: Interlocking panels for 70% faster installation
Applications
  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention
Customization Services
  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
Gabion Specifications
8x10cm 6x8cm
Galvanized or PVC coated Galvanized or PVC coated
Length(m) | Width(m) | Height(m) Mesh diameter | Zinc Mesh diameter | Zinc
2 | 1 | 1 2.7mm | >245g/m² 2.0mm | >215g/m²
3 | 1 | 1 Side wire diameter | Zinc Side wire diameter | Zinc
4 | 1 | 1 3.4mm | >265g/m² 2.7mm | >245g/m²
6 | 1 | 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
Woven Gabion Cage Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof 0
