Elevate Landscape Gabion Basket Retaining Wall Welded Mesh Box High Durability

Large Image : Elevate Landscape Gabion Basket Retaining Wall Welded Mesh Box High Durability

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE ISO
Model Number:	2X1X1 3X1X1 4X1X1 6X2X0.3

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 12-17
Packaging Details:	pallets
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000 pc need 7 days

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Corrosion Resistant, Easy To Install	Stock:	Have Large Stock
Tensile Strength:	350-550N/mm2	Customized:	Avaliable
Wire Diameter:	4mm 5mm	Zinc:	>245g/m²

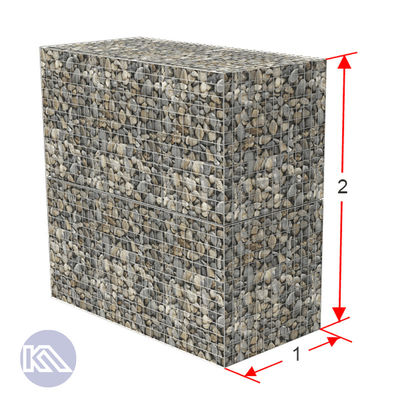

Cage Size:	111m,211m,311m,411m	Net Wire:	Popular 2.7mm
Advantages:	Easy Install, Long Using Life	Season:	Everyday
Twist:	Double Twisting
Highlight:	Welded Gabion Basket Retaining Wall , Welded Gabion Mesh Box , Welded gabion basket retaining wall

Elevate Landscape Gabion Basket Retaining Wall Welded Mesh Box High Durability

Design Considerations for Gabion Retaining Walls

When designing a Gabion Retaining Wall, several key principles and features must be considered to ensure stability, functionality, and aesthetic appeal:

Site Assessment: Conduct a thorough evaluation of soil type, slope gradient, and drainage conditions to design an effective retaining wall.
Wall Height and Length: Design dimensions based on site requirements, with taller walls potentially needing stepped or terraced designs for stability.
Foundation Preparation: Excavate to 6-12 inches depth, level the base, and add compacted gravel for enhanced stability.
Gabion Baskets: Use high-quality galvanized or PVC-coated wire mesh baskets sized appropriately for your wall design.
Filling Materials: Select angular stones that fit mesh openings and interlock well for maximum stability.

Drainage: Install perforated drainage pipes at the base with gravel backfill to prevent water buildup.
Stability and Interlocking: Stagger joints between layers and use tiered placement to enhance structural integrity.
Load Analysis: Calculate appropriate wall height and thickness, with base width typically one-third to one-half of wall height.
Environmental Benefits: Eco-friendly construction using natural/recycled materials that can integrate vegetation.
Aesthetic Customization: Natural appearance with options for various stone types and colors to complement surroundings.

By incorporating these design principles, Gabion Retaining Walls provide durable, cost-effective solutions for slope stabilization and erosion prevention while enhancing landscape aesthetics.
