Rockfall Netting Protection Gabion Fence Sand Wall For Stone Cage Retaining Wall

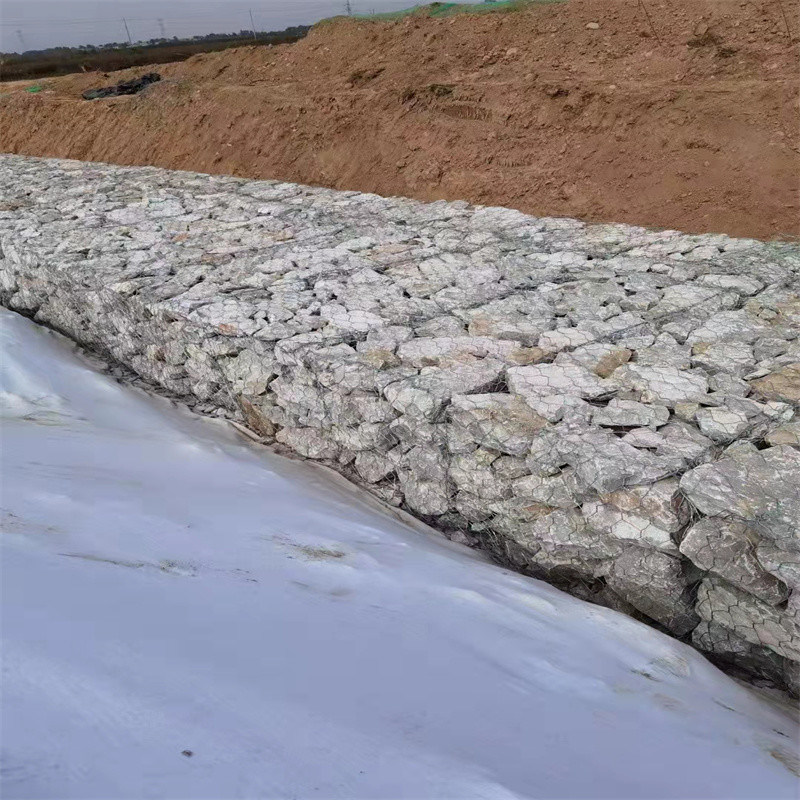

Large Image : Rockfall Netting Protection Gabion Fence Sand Wall For Stone Cage Retaining Wall

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE ISO
Model Number:	Gabion Retaining wall

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 13-20
Packaging Details:	pallets Gabion Retaining wall
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000 pc need 7 days

Contact Now Chat Now

Detailed Product Description

Highlight:

gabion fence sand wall

Rockfall Netting Protection sand wall

gabion fence rockfall netting protection

Rockfall Netting Protection Gabion Fence Sand Wall For Stone Cage Retaining Wall

Our woven gabion retaining wall system offers flexible protection that adapts to terrain deformation while providing excellent seismic resistance.

Product Specifications

Dimensions: 2m x 1m x 1m, 4x1x1m (Length x Width x Height)

Material: 3.05mm Galvanized Steel Wire

Mesh Size: 80mm x 100mm

Coating: Hot-dip galvanized, zinc coating weight complies with DPWH standards

Edge wire diameter: 3.80mm

Binding wire diameter: 2.20mm

Aperture	Wire diameter	Edge wire	Gabion Size	Material
60x80mm	2.2mm, 2.7mm	2.4mm, 3.4mm	6x2x0.3m, 2x1x0.5m	Galvanized steel wire PVC coated steel wire Green color or Grey color
80x100mm	2.7mm, 3.05mm	3.4mm, 3.8mm	2X1X1m, 3X1X1m, 4X1X1m, 5X1X1m
100x120mm	3.0mm, 3.05mm	3.4mm, 3.8mm	2X1X1m, 3X1X1m, 4X1X1m, 5X1X1m

Installation Method

Prepare all installation materials, including panels and binding wire
Erect each section and install the front, back, and partition panels
Connect and secure the panels with binding wire
Fill the gabion baskets with stones, either by hand or using a shovel
After filling, secure the lid with binding wire
Assemble the gabion baskets step by step according to the design requirements to complete the project

Choose our Galvanized Philippine 3.05mm Gabion products to meet your engineering needs while adding unique aesthetic value to your projects. We look forward to collaborating with you to explore the Philippine market.
