Galvanized Gabion Retaining Wall Gabion Stone Boxes With ISO9001 Certificate

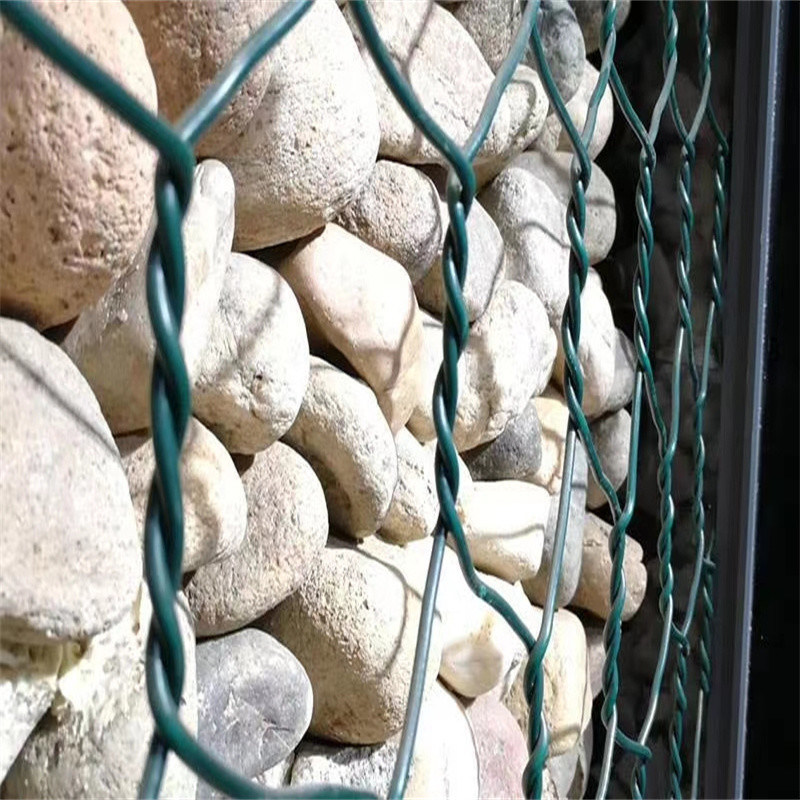

Large Image : Galvanized Gabion Retaining Wall Gabion Stone Boxes With ISO9001 Certificate

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE, ISO, COC,BESC
Model Number:	Gabion Retaining Wall

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD 16-20
Packaging Details:	pallet or bundle Gabion Retaining Wall
Delivery Time:	7
Payment Terms:	L/C,Western Union,MoneyGram,T/T
Supply Ability:	1 40-foot high containers in 7 days

Contact Now Chat Now

Detailed Product Description

Product Name:	PVC Coated 310.5m / 520.3m Mesh Gabion Mattress Box With 60*80mm Mesh Hole For Bridge Construction	Key Word:	Gabion Retaining Wall
Material:	Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire	Hole Shape:	Hexagonal, Double Twist
Wire Gauge:	2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm	Application:	Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Surface Treatment:	Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated	Product Name:	Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Size:	2m1m1m,1x1x0.5m,411m,511,Customized,	Feature:	Easily Assembled,less Transport Freight,Strong And Durable, Simple Installation
Width:	2' -2m,0.914m~1.83m,0.5-2m,1M	Zinc Coated:	40-60g,60g-80g,270g,245g, Etc,
Highlight:	Retaining Wall Gabion Stone Boxes , ISO9001 Certificate Gabion Retaining Wall , 1m Galvanized Gabion Stone Boxes

Galvanized Gabion Retaining Wall Gabion Stone Boxes With ISO9001 Certificate

Factory Supplied 1m × 1m × 4m Galvanized Gabion Stone Boxes Gabion Retaining Wall with ISO9001 certificate. These gabion walls replace concrete structures, featuring flexible designs that adapt to foundation settlement while reducing construction costs.

Common Gabion Basket Specifications

Product Name	Gabion
Hole Type	Hexagonal
Production process	Three twist / Five twist
Material	GI wire, PVC coated wire, galfan wire
Wire Diameter	2.0mm-4.0mm
Hole Size	60×80mm, 80×100mm, 100×120mm, 120×150mm
Gabion Size	2m×1m×0.5m, 2m×1m×1m, 3m×1m×0.5m, 3m×1m×1m, 4m×1m×0.5m, 4m×1m×1m (Other sizes can be customized)

Standard Gabion Basket Dimensions

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	1	0	1
2	1	1	1	2
3	1	1	2	3
4	1	1	3	4
5	1	1	4	5
6	1	1	5	6

Product Applications

Erosion Control: Stabilizes slopes and riverbanks, preventing soil erosion while allowing proper water drainage.
Retaining Walls: Creates durable, natural-looking walls for hillside stabilization in residential and commercial projects.
Flood Protection: Forms effective barriers to divert water flow and protect infrastructure from flood damage.
Coastal Defense: Stabilizes shorelines against wave action, protecting beaches and coastal properties.
Road and Highway Embankments: Reinforces transportation routes by retaining soil and preventing landslides.
Bridge Abutments and Foundations: Provides cost-effective structural reinforcement for bridge construction.

Technical Specifications

Parameter	Description	Typical Value / Range
Material	Base material used for constructing the mesh	HDP/Galvanized Wire, PVC Wire
Coating	Surface treatment for enhanced corrosion resistance	Galvanized, HDP Galvanized, PVC Coated
Wire Diameter	The thickness of the wires used in the mesh	Mesh Wire: 2.0~3.05mm Selvage Wire: 2.4~4.0mm Tie Wire: 2.0~2.4mm
Mesh Opening Size	The size of the openings between wires	60×80mm, 80×100mm, 100×120mm, 120×150mm
Overall Dimensions	Standard Gabion Roll and Gabion Basket Size	Gabion Roll Width: 1~4m Gabion Basket: 1×1×1m, 2×1×1m, 3×1×1m, 4×1×1m, 5×1×1m, 6×1×1m
Lifespan	Expected service life under normal conditions	6~20 years (depends on environment)
