OEM 2x1x1m Gabion Retaining Wall Rockfall Barrier Heavy Duty Rustproof

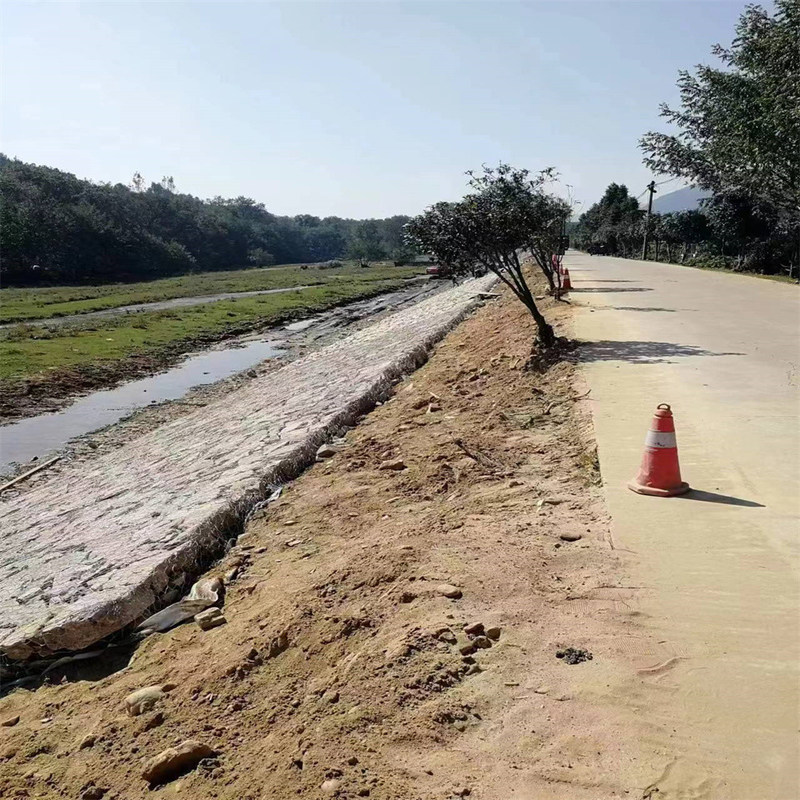

Large Image : OEM 2x1x1m Gabion Retaining Wall Rockfall Barrier Heavy Duty Rustproof

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	gabion retaining wall

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 12-17
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000 pc per day

Contact Now Chat Now

Detailed Product Description

Features:	Durable, Flexible, Easy To Install	Application:	Erosion Control, Retaining Walls, River Bank Protection, Landscaping
Surface Treatment:	Hot-dipped Galvanized, PVC Coated	Mesh Size:	60x80mm, 80x100mm, 100x120mm
Size:	1x1x1m, 2x1x1m, 3x1x1m, 4x1x1m	Wire Diameter:	2.0-4.0mm
Material:	Galvanized Steel Wire	Edge Wire:	3.4mm
Product Name:	Woven Gabion Cage 2x1x1m Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof	Key Words:	Gabion Retaining Wall
Highlight:	gabion box retaining wall rockfall , Gabion Retaining Wall 2x1x1m , Heavy Duty Gabion Retaining Wall

OEM 2x1x1m Gabion Retaining Wall Rockfall Barrier Heavy Duty Rustproof

Gabion Retaining Wall 2x1x1m Hydraulic Engineering Rockfall Barrier Heavy Duty Rustproof

Available in a range of sizes, including 2x1x1m, this gabion box can be tailored to fit specific project requirements, making it suitable for various construction applications.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance
Load Capacity: Up to 50kN/m² vertical pressure
Eco-Friendly: 100% recyclable materials with zero chemical runoff
Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Packaging Details

Gabion baskets Packing: 40-100set/bundle, binding with steel strape or strands; 40-100set/bundle; Then use wooden tray; Some sizes in rolls; As customer's requirement

Bundle package
Several pieces of gabions to a pallet, pallets put into containers
70pieces to a bundle, 24-26Tons to a 40HQ

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

Mesh Hole Model	8x10cm
Mesh Hole Model	Galvanized or PVC coated	Galvanized or PVC coated
Length(m) Width(m) Height(m)	2.7mm >245g/m²	2.0mm >215g/m²
2 1 1	3.4mm >265g/m²	2.7mm >245g/m²
3 1 1	Binding wire diameter of 2.7m	Binding wire diameter of 2.0m
4 1 1
6 1 1
