Curved Architectural Gabion Retaining Wall With Iron Wire Mesh Customized Size

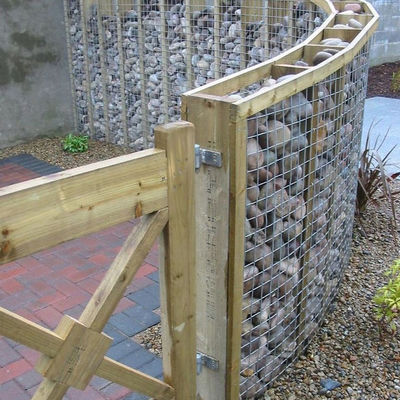

Large Image : Curved Architectural Gabion Retaining Wall With Iron Wire Mesh Customized Size

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion basket

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 39-45
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Highlight:

Customized Size retaining gabion wall

Curved Architectural gabion retaining wall

Curved Architectural Gabion Retaining Wall With Iron Wire Mesh Customized Size

Galvanized Welded Mesh Gabion Box

Architectural Innovation: Welded gabion boxes are used in modern architectural designs to create impressive visual features. Their industrial, yet natural aesthetic, lends itself well to contemporary building styles that blend environmental sustainability with bold, modern looks.

Material Specifications

Material	Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter	3 mm-6 mm
Aperture	5050 mm, 50100 mm etc
Gabion Box Size	1003030 cm, 1005030 cm, 10010050 cm, 100100100 cm etc.
Finish	Hot Dipped Galvanized; Heavy Zinc Coating; Galfan Coating; PVC Coated.

Standard Dimensions

Normal Box Size (cm)	Diaphragms	Capacity (m3)	Mesh Size (mm)
100x30x30	None	0.09	50×50 or 100×50
100x50x30	None	0.15
100x100x50	None	0.5
100x100x100	None	1
150x100x50	1	0.75
150x100x100	1	1.5
200x100x50	1	1
200x100x100	1	2

Other sizes can be customized.

Applications

Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.
Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.
Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.
Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.
