Reservoir Embankment PVC Coated Gabion Retaining Wall Woven Anti Rust Water Flow Control

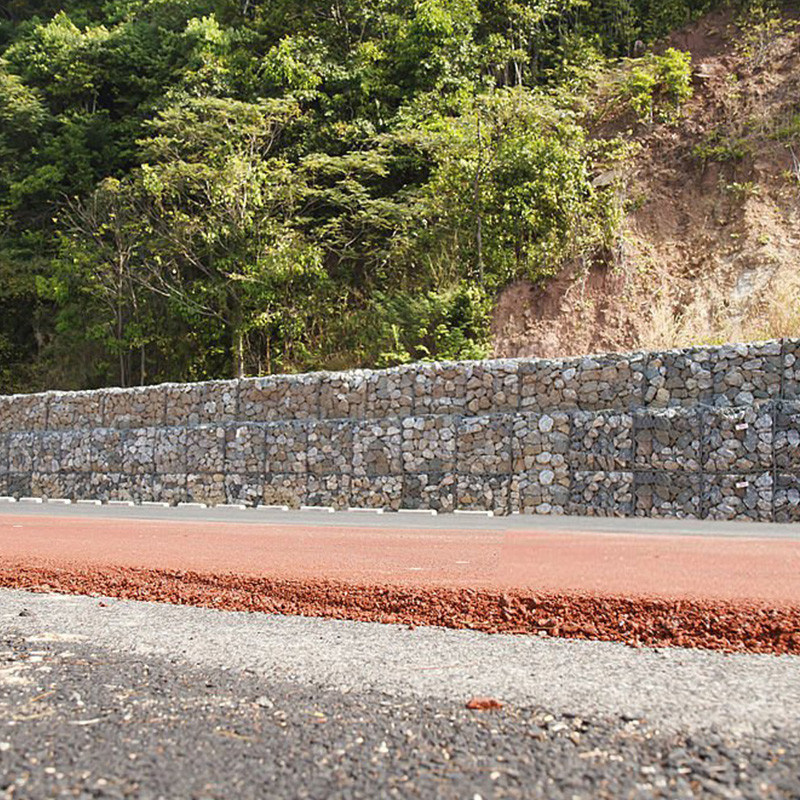

Large Image : Reservoir Embankment PVC Coated Gabion Retaining Wall Woven Anti Rust Water Flow Control

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion retaining wall

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 12-17
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Woven Gabion Retaining Wall Reservoir Embankment PVC Coated Anti Rust Water Flow Control	Key Words:	Gabion Retaining Wall
Aperture:	60*80mm	Coating:	Zinc Coating
Type:	Twist Hexagonal Wire Mesh	Application:	Retaining Wall, Erosion Control, Landscaping
Feature:	Strong And Durable	Assembly:	Easily Assembled
Highlight:	gabion retaining wall woven , pvc coated gabion retaining wall , woven pvc coated gabion

Reservoir Embankment PVC Coated Gabion Retaining Wall Woven Anti Rust Water Flow Control

Woven Gabion Retaining Wall - Hydraulic Engineering Solution

Our heavy-duty woven gabion retaining walls feature double-twisted hexagonal steel mesh (3.0-4.0mm wire) with hot-dip galvanized or PVC coating for superior corrosion resistance in water environments. The 80×100mm mesh structure provides optimal stone retention while maintaining 95%+ permeability, effectively reducing flow velocity by 40-60%. Specifically designed for riverbank stabilization, flood control systems, and coastal protection works. Flexible yet durable construction accommodates ground movement while withstanding 5m/s water currents. Certified to EN 10223-3 standards with 30+ year lifespan. Custom configurations available for large-scale hydraulic projects requiring reliable, eco-friendly retaining solutions.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Product Advantages

Superior Strength: Heavy-duty double-twisted steel mesh withstands hydraulic pressure
Excellent Flexibility: Adapts to ground settlement without structural damage
High Permeability: 95% water flow reduces hydrostatic pressure
Long Service Life: Corrosion-resistant coating ensures 30+ year durability

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

	Mesh hole model
	8x10cm	6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated	Galvanized or PVC coated
2	1	1	2.7mm >245g/m²	2.0mm >215g/m²
3	1	1	Side wire diameter 3.4mm >265g/m²	Side wire diameter 2.7mm >245g/m²
4	1	1	Binding wire diameter of 2.7m	Binding wire diameter of 2.0m
6	1	1
