Customized 2m Gabion Basket Highly Resistant To Corrosion Wear

Customized 2m Gabion Basket Highly Resistant To Corrosion Wear
Customized 2m Gabion Basket Highly Resistant To Corrosion Wear Customized 2m Gabion Basket Highly Resistant To Corrosion Wear

Large Image :  Customized 2m Gabion Basket Highly Resistant To Corrosion Wear

Product Details:
Place of Origin: China
Brand Name: KN
Certification: CE ISO
Model Number: 2X1X1 3X1X1 4X1X1 6X2X0.3
Payment & Shipping Terms:
Minimum Order Quantity: 100pc
Price: USD 12-17
Packaging Details: pallets
Delivery Time: 7-10 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000 pc need 7 days
Contact Now Chat Now
Detailed Product Description
Features: Flexible, Corrosion Resistant, Easy To Install Product Name: Gabion Basket Engineering
Stock: Have Large In Stock Tensile Strength: 350-550N/mm2
Customized: Avaliable Wire Diameter: 2.7mm
Zinc: >275g/m² Cage Size: 1*1*1m,2*1*1m,3*1*1m,4*1*1m
Net Wire: Popular 2.7mm Advantages: Easy Install, Long Using Life
Twist: Double Twisting Selvage Wire: 3.4mm
Highlight:

Customized 2m gabion basket

,

Wear Resistant 2m gabion basket

,

Corrosion Resistant 2m gabion basket

Customized 2m Gabion Basket Highly Resistant To Corrosion Wear
Gabion Basket by Roll
Introduction
The Gabion Basket by Roll is an innovative solution for slope protection and landslide prevention. Engineered for robustness, it effectively prevents soil erosion and debris flow, making it ideal for mountainous areas prone to landslides.
Gabion Basket Engineering
  • Roll-Based Design: Easy transportation and installation with on-site unrolling capability, reducing time and labor requirements
  • High Strength and Durability: Constructed from heavy-duty galvanized steel wire mesh with exceptional corrosion and wear resistance
  • Eco-Friendly: Open structure enables natural drainage and vegetation growth, enhancing stability and aesthetic integration
  • Customizable Solutions: Available in multiple sizes and configurations to meet specific project requirements
Specifications
Mesh Sizes (mm) Length (M) Width (M) Depth (M) Capacity (m³) Diaphragms Wire Diameter
60×80
80×100
100×120		 4 2 0.3 2.4 3 Mesh Wire:
2.0mm, 2.2mm
2.5mm, 2.7mm, 3.05mm
2.0/3.0mm, 2.2/3.2mm
2.5/3.5mm, 2.7/3.7mm

Selvedge Wire:
2.5mm, 2.7mm
3.2mm, 3.4mm, 3.8mm
2.5/3.5mm, 2.7/3.7mm
3.2/4.2mm, 3.4/4.4mm

Lacing Wire:
2.0mm, 2.2mm
2.0/3.0mm, 2.2/3.2mm
6 2 0.3 3.6 5
4 2 0.23 1.84 3
6 2 0.23 2.76 5
Other specifications can be custom manufactured to meet project requirements.
Engineering Applications
Primarily used for slope protection in mountainous regions, the Gabion Basket by Roll effectively prevents landslides and mudslides through:
  • Soil Stabilization: Stone-filled baskets create rigid structures that prevent soil displacement during heavy rains
  • Erosion Control: Porous design allows water passage while retaining soil and debris
  • Infrastructure Protection: Provides stable barriers for roads and communities near unstable slopes
Installation Process
  1. Site Preparation: Clear debris and level the slope area
  2. Unrolling: Deploy gabion baskets directly on slope, securing with stakes/anchors
  3. Filling: Pack baskets tightly with stones or suitable materials
  4. Final Securing: Connect baskets and add fasteners to create cohesive structure
Key Benefits
  • Cost Efficiency: Roll design reduces transportation and installation expenses
  • Low Maintenance: Requires minimal upkeep after installation
  • Environmental Integration: Natural appearance blends with surroundings
  • Longevity: Withstands harsh conditions for extended service life
Product Gallery

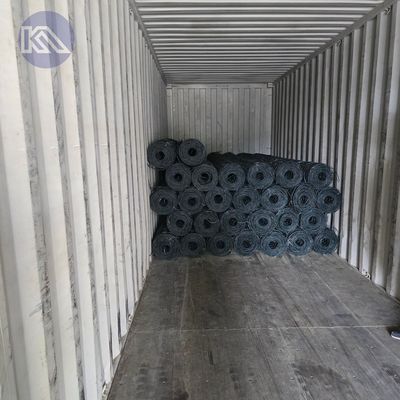

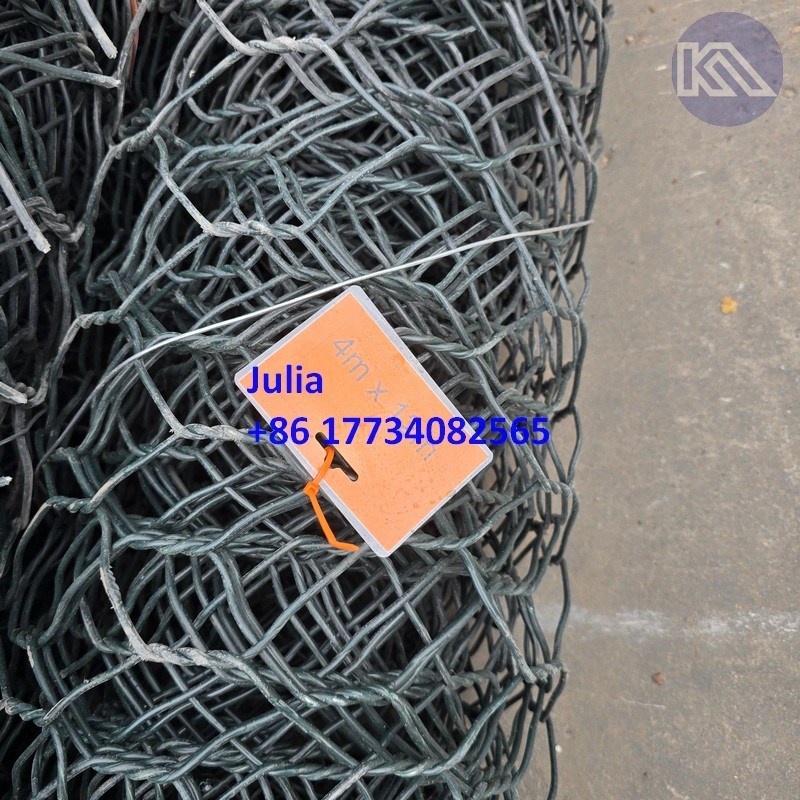

Customized 2m Gabion Basket Highly Resistant To Corrosion Wear 0 Customized 2m Gabion Basket Highly Resistant To Corrosion Wear 1 Customized 2m Gabion Basket Highly Resistant To Corrosion Wear 2 Customized 2m Gabion Basket Highly Resistant To Corrosion Wear 3
The Gabion Basket by Roll provides a sustainable, durable solution for slope stabilization. Its innovative roll-based design, environmental compatibility, and proven effectiveness make it an optimal choice for erosion control and landslide prevention projects.
