Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m

Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m
Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m

Large Image :  Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-gabion basket
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: USD 9.6-15
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per day
Contact Now Chat Now
Detailed Product Description
Material: 275g Zinc Coated Wire, Galvanized Hole Shape: Hexagonal
Weave Type: Double Twisted Surface: Hot Dipped Galvanized, Zinc Coated
Common Size: 2*1*1m, 1*1*1m, 3*1*1m,4*1*1m, 5*1*1m, 6*2*0.3m Package: In Bundle Or Roll
Product Name: Gabion Basket, Gabion Box, Gabion Cage, Mesh Gabion Box, Gabion Retaining Wall Usage: Flood Control Wall, Retaining Wall, Slope Protection Wall
Daily Output: 30000 Sq.mt Per Day Sample: Free
Producton Time: 7 Days/40HQ Stock: Avalible
Highlight:

Hot Dipped Galvanized Gabion Basket

,

Anti Rust Gabion Basket

,

3x1x1m basket gabion

Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m
As a leading manufacturer of weave gabion baskets and welded gabion baskets, we supply high-quality products with fast delivery service. Our gabion baskets are ideal for various construction and erosion control applications.
Product Overview

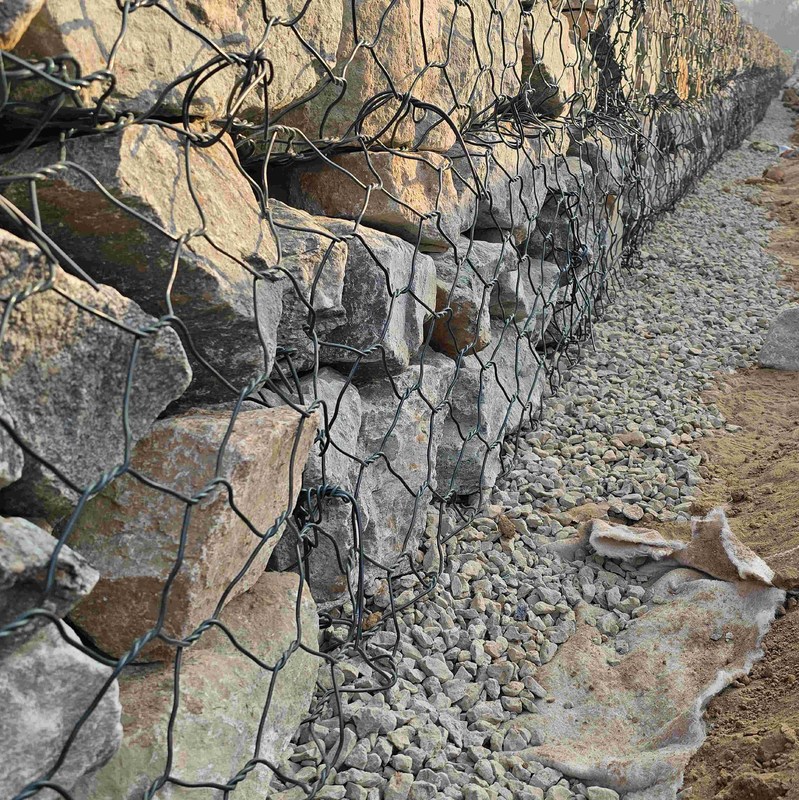

Our weave gabion baskets (also called gabion boxes or mesh gabion retaining walls) are made from hot-dipped galvanized wire double twisted into hexagonal mesh holes. When filled with stone, they form durable retaining walls for flood control, river channel protection, and slope stabilization. Welded gabion boxes offer similar applications but feature thicker wire and rectangular/square mesh holes connected with spiral wire.
Weave Type Gabion Basket Specifications
Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5% Aluminum Wire
Wire Diameter 2.0mm to 3.05mm
Aperture 60×80cm, 80×100cm, 100×120cm
Gabion Box Size 100×100×100 cm, 200×100×100 cm, 300×100×100 cm, 600×200×30 cm etc.
Finish Hot Dipped Galvanized; Heavy Zinc Coating; Galfan Coating; PVC Coated
Standard Dimensions
Normal Box Size (cm) Diaphragms Capacity (m³) Mesh Size (mm)
200×100×100 1 2 60×80 or 18×100
300×100×100 2 3
400×100×100 3 4
500×100×100 4 5
600×100×100 5 6
600×200×30 5 3.6
200×100×50 1 1
300×100×50 2 1.5
Note: Other sizes can be customized according to your requirements.
Common Applications

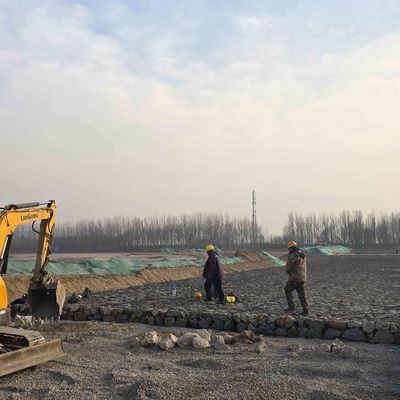

  • Retaining Walls: Used for stabilizing slopes, preventing soil erosion, and supporting embankments in residential and commercial projects.
    • Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m 0
  • Erosion Control: Effective for controlling soil erosion along riverbanks, coastlines, and steep slopes with stable, permeable structures.
    • Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m 1
  • Flood Protection: Can create flood barriers or levees to protect areas from floodwaters and excessive rainfall.
    • Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m 2
Technical Specifications
  • Fabric Type: Hot Dipped Galvanized double twisted wire mesh
  • Tensile Strength (wire): 540 to 770 N/mm²
  • Available wire thicknesses: 2.0mm, 2.5mm, 2.7mm, 3.05mm
  • Mesh Aperture: 60×80mm, 80×100mm, 100×120mm, 110×130mm
  • Standard basket lengths: 1000mm, 2000mm, 3000mm, 5000mm etc.
  • Standard basket widths: 1000mm, 2000mm
  • Standard basket heights: 300mm, 500mm, 1000mm
  • Bespoke Sizes Available upon request
Additional Resources
Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m 3
Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m 4
Anti Rust Hot Dipped Galvanized Gabion Basket 1x1x1m 3x1x1m 5
