Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection

Large Image : Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	Gabion Basket

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 10-20
Packaging Details:	pallet Gabion Basket
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	2.7mm Wire Diameter Plain Weave Gabion Basket For Riverbank Protection	Key Words:	Gabion Basket
Surface Treatment:	Hot-dipped Galvanized	Processing Service:	Bending, Custom Sizes
Hole Shape:	Hexagonal	Size:	2x1x1m 3x1x1m 4x1x1m
Stock:	Have Large Stock	Material:	Galvanized Steel Wire
Highlight:	Stone Gabion Cages basket , Protection Stone Gabion Cages basket , Defensive Barriers Stone Gabion Cages basket

Stone Gabion Cages Basket With Gabion Bags Defensive Barriers For Protection

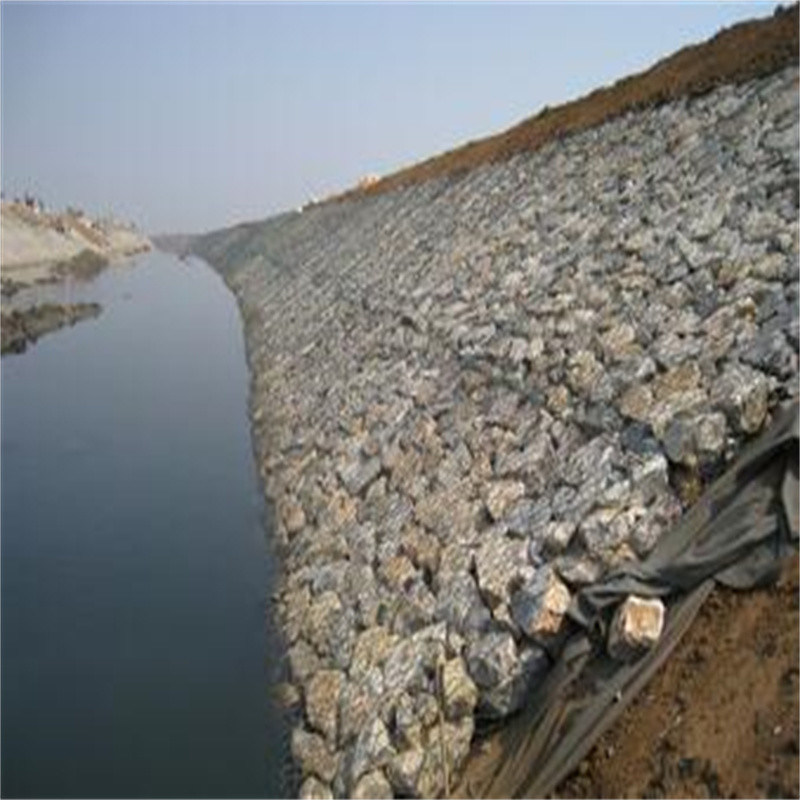

Gabion baskets provide effective slope protection to prevent landslides and falling rocks, ensuring the safety of highway and railway subgrades. These flexible retaining walls replace concrete structures, adapting to foundation settlement while reducing costs.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Specifications

Parameter	Description	Typical Value / Range
Material	Base material used for constructing the mesh	HDP/Galvanized Wire, PVC Wire
Coating	Surface treatment for enhanced corrosion resistance	Galvanized, HDP Galvanized, PVC Coated
Wire Diameter	The thickness of the wires used in the mesh	Mesh Wire: 2.0~3.05mm Selvage Wire: 2.4~4.0mm Tie Wire: 2.0~2.4mm
Mesh Opening Size	The size of the openings between wires	6080mm, 80100mm, 100120mm, 120150mm
Overall Dimensions	Standard Gabion Roll and Gabion Basket Size	Gabion Roll Width: 1~4m Gabion Basket: 111m to 611m
Lifespan	Expected service life	6~20 years (depends on environment)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance

Load Capacity: Up to 50kN/m² vertical pressure

Eco-Friendly: 100% recyclable materials with zero chemical runoff

Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

Dimensions (LxWxH)	8x10cm Mesh		6x8cm Mesh
Dimensions (LxWxH)	Galvanized	PVC Coated	Galvanized	PVC Coated
2x1x1m	2.7mm wire, >245g/m² Zn	PVC coated	2.0mm wire, >215g/m² Zn	PVC coated
3x1x1m	3.4mm side wire, >265g/m² Zn	PVC coated	2.7mm side wire, >245g/m² Zn	PVC coated
4x1x1m	3.4mm side wire, >265g/m² Zn	PVC coated	2.7mm side wire, >245g/m² Zn	PVC coated
6x1x1m	2.7mm binding wire	PVC coated	2.0mm binding wire	PVC coated
