Galvanized Gabion Baskets Hot Dipped Feature For Protection Dam Base

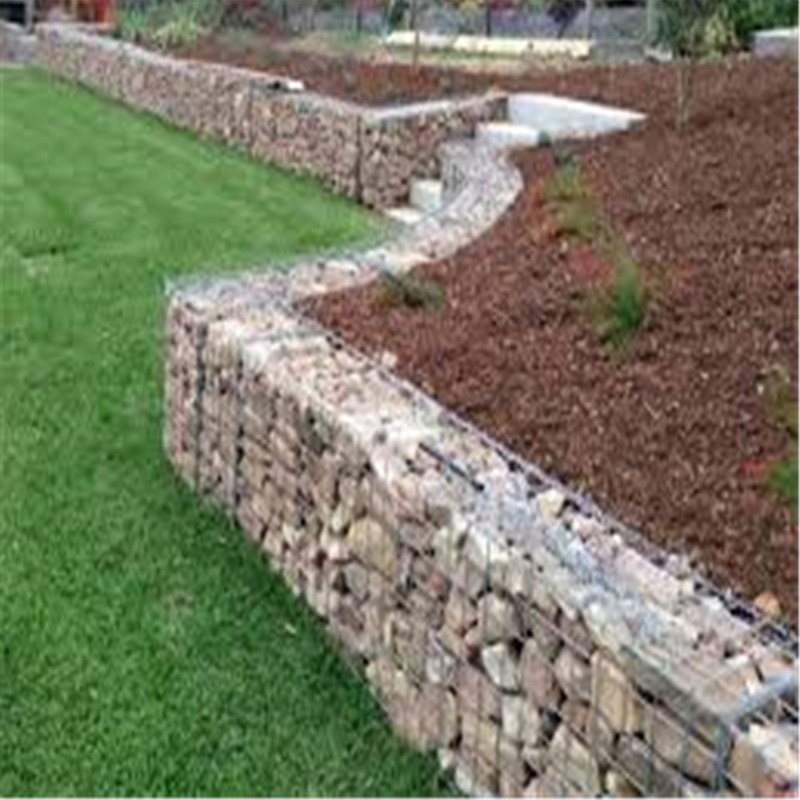

Large Image : Galvanized Gabion Baskets Hot Dipped Feature For Protection Dam Base

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-welded gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 35-45
Packaging Details:	pallet
Delivery Time:	10 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Galvanized Gabion Baskets Hot Dipped Feature For Protection Dam Base	Key Words:	Welded Gabion
Helical Wire:	3mm	Edge Wire Diameter:	3.0-4.0mm
Mesh Size:	50x50mm, 75x75mm, 100x100mm	Feature:	Easily Assembled, Anti-corrosion
Pvc Painted Color:	Gray, Dark Green, White	Aperture:	50×50mm, 50×100mm
Highlight:	galvanized gabion baskets hot dipped , galvanized filled gabion baskets , hot dipped filled gabion baskets

Galvanized Gabion Baskets Hot Dipped Feature For Protection Dam Base

Welded Gabion is designed to be customizable, allowing for unique design elements and specifications. Whether you require a specific color, size, or shape, the Welded Gabion Box can be tailored to meet your exact needs. This flexibility makes it an excellent choice for architects, designers, and contractors looking to create distinctive and personalized structures.

Welded Gabion Basket Details:

Product Name: Welded Gabion Box
Box Size: 1x1x1m, 2x1x1m, 3x1x1m
Customise: Acceptable
Process: Woven Mesh
Colors: As Required
Wire: 3.0mm-5.0mm

Type of welded Gabion	Wire Gauge Diameter	Mesh Size	Gabion Size
Galvanized	3-5mm	50X50,75X75,50X100	211, 111,110.5,etc
PVC Coated	3.0/3.8mm	50X50,75X75,50X100	211, 111,210.5,etc
95% Zinc + 5% Al	3-5mm	50X100,75X75,100X100	110.5,211,110.3etc

Welded Gabion Basket Connection Details:

U-clips
C-ring
Lacing wire connection
Hook connection

The spiral wires & hooks or stiffeners are most popular as they provide greater strength for usage.

Welded Gabion Basket Advantages:

Economic - Just fill the stone into the gabions and seal it
Simple installation - No special technology needed
Weather proof under natural destruction, corrosion resistant
Sludge in the stones is good for plant growing, mixing to form integrity with the natural environment
Good permeation prevents damage by hydrostatic pressure
Less transport freight - Can be folded together for transport and installation
No collapse even under big scope of deforming
