Double Twisted Welded Wire Gabion Baskets Customized Size For Construction Project

Large Image : Double Twisted Welded Wire Gabion Baskets Customized Size For Construction Project

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE ISO
Model Number:	2X1X1 3X1X1 4X1X1 6X2X0.3

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 12-17
Packaging Details:	pallets
Delivery Time:	7-10 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000 pc need 7 days

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Corrosion Resistant, Easy To Install	Product Name:	Manufacturer Double Twisted Types Gabion Basket For Construction Project
Stock:	Have Large Stock	Tensile Strength:	350-550N/mm2
Customized:	Avaliable	Wire Diameter:	2.7mm
Zinc:	>245g/m²	Cage Size:	111m,211m,311m,411m
Net Wire:	Popular 2.7mm	Advantages:	Easy Install, Long Using Life
Twist:	Double Twisting	Selvage Wire:	3.4mm
Highlight:	double twisted welded gabion baskets , double twisted welded wire gabion baskets , 2.7mm welded gabion baskets

Double Twisted Welded Wire Gabion Baskets - Custom Sizes for Construction Projects

Manufacturer Double Twisted Types Gabion Basket For Construction Project

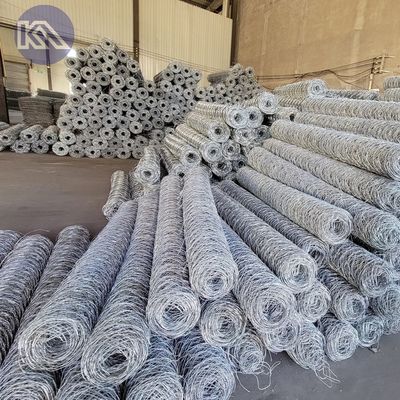

Constructed from double-twisted hexagonal steel mesh (2.7-4.0mm wire diameter) with galvanized or PVC coating, our woven gabion baskets are engineered for water control infrastructure. The 80×100mm mesh structure forms durable, permeable containers when filled with stone, ideal for riverbank stabilization, flood defense barriers, and coastal revetments.

Standard units (1×1×1m to 2×1×1m) feature internal diaphragms for structural integrity in flowing water. Compliant with EN 10223-3 standards, these baskets adapt to subgrade contours while resisting hydraulic pressure. Custom dimensions and configurations are available for dam construction, bridge abutment protection, and erosion-prone waterway projects.

Product Specifications

Mesh Size: 60×80 mm, 80×100 mm, 100×120 mm, or custom sizes available
Dimensions:
- Length: 1-6 meters
- Width: 0.23-2 meters
- Height: 0.3-1 meter
Wire Diameter: 2.0-4.0 mm
Surface Treatment: Galvanizing, hot-dip galvanizing, PVC coating, Galfan coating

Mesh Sizes (mm)	Gabion basket dimensions and volumes	Wire diameter
60×80 80×100 100×120	L(M): 4 \| W(M): 2 \| D(M): 0.3 \| Capacity(m³): 2.4 \| Number of diaphragm: 3	Mesh Wire: 2.0mm, 2.2mm 2.5mm, 2.7mm, 3.05mm 2.0/3.0mm, 2.2/3.2mm 2.5/3.5mm, 2.7/3.7mm Selvedge wire: 2.5mm, 2.7mm 3.2mm, 3.4mm, 3.8mm 2.5/3.5mm, 2.7/3.7mm 3.2/4.2mm, 3.4/4.4mm Lacing wire: 2.0mm, 2.2mm 2.0/3.0mm, 2.2/3.2mm
	L(M): 6 \| W(M): 2 \| D(M): 0.3 \| Capacity(m³): 3.6 \| Number of diaphragm: 5
	L(M): 4 \| W(M): 2 \| D(M): 0.23 \| Capacity(m³): 1.84 \| Number of diaphragm: 3
	L(M): 6 \| W(M): 2 \| D(M): 0.23 \| Capacity(m³): 2.76 \| Number of diaphragm: 5
	L(M): 2 \| W(M): 1 \| D(M): 0.5 \| Capacity(m³): 1 \| Number of diaphragm: 1
	L(M): 3 \| W(M): 1 \| D(M): 0.5 \| Capacity(m³): 1.5 \| Number of diaphragm: 2
	L(M): 4 \| W(M): 1 \| D(M): 0.5 \| Capacity(m³): 2 \| Number of diaphragm: 3
	L(M): 2 \| W(M): 1 \| D(M): 1 \| Capacity(m³): 2 \| Number of diaphragm: 1
	L(M): 3 \| W(M): 1 \| D(M): 1 \| Capacity(m³): 3 \| Number of diaphragm: 2
	L(M): 4 \| W(M): 1 \| D(M): 1 \| Capacity(m³): 4 \| Number of diaphragm: 3

Other specifications can also be customized processing.

Product Advantages

Cost-effective: Simply fill with stones and seal for use
Easy Installation: No special skills required
Weather-resistant: Good corrosion resistance in natural environments
Eco-friendly: The gaps between stones allow silt to accumulate, which is conducive to plant growth and can blend with the natural environment
Low Transportation Costs: Foldable for transportation and then unfolded on-site

Application Fields

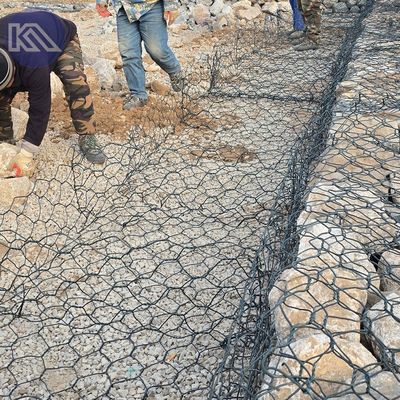

Water Conservancy Projects: Used for embankments, riverbank protection, and waterway lining to effectively prevent scouring by water flow
Environmental Protection: Plays an important role in ecological restoration and soil conservation
Road Protection: Protects road foundations, enhancing the stability and durability of roads
Coastal Protection: Used in seawalls and port projects to resist wave erosion

Customer Services

Pre-sales Services:

Free samples available (freight to be paid by the customer)
Ample inventory for fast delivery
A variety of styles to choose from

After-sales Services:

We welcome customers' suggestions on prices and products
If you have any questions, please feel free to contact us via email or phone at any time

We sincerely welcome partners from all over the world to join our sales network and work together to promote the application of gabion baskets in global water conservancy and environmental protection projects.

Cooperation and Services

As a professional manufacturer, we are committed to providing high-quality gabion basket solutions for global water conservancy and environmental protection projects. We maintain close cooperation with government departments in various countries and have provided reliable product support for numerous water conservancy and environmental protection projects.
