Pvc Coated Galvanized Gabion Wire Mesh Hexagonal Gabion Basket Wall For Water Conservancy And Eco Projects

Pvc Coated Galvanized Gabion Wire Mesh Hexagonal Gabion Basket Wall For Water Conservancy And Eco Projects
Pvc Coated Galvanized Gabion Wire Mesh Hexagonal Gabion Basket Wall For Water Conservancy And Eco Projects Pvc Coated Galvanized Gabion Wire Mesh Hexagonal Gabion Basket Wall For Water Conservancy And Eco Projects

Large Image :  Pvc Coated Galvanized Gabion Wire Mesh Hexagonal Gabion Basket Wall For Water Conservancy And Eco Projects

Product Details:
Place of Origin: China
Brand Name: KN
Certification: CE ISO
Model Number: 2X1X1 3X1X1 4X1X1 6X2X0.3
Payment & Shipping Terms:
Minimum Order Quantity: 100pc
Price: USD 12-17
Packaging Details: pallets
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pc need 7 days
Contact Now Chat Now
Detailed Product Description
Features: Flexible, Corrosion Resistant, Easy To Install Stock: Have Large Stock
Tensile Strength: 350-550N/mm2 Customized: Avaliable
Wire Diameter: 2.7mm Zinc: >245g/m²
Cage Size: 1*1*1m,2*1*1m,3*1*1m,4*1*1m Net Wire: Popular 2.7mm
Advantages: Easy Install, Long Using Life Season: Everyday
Twist: Double Twisting Selvage Wire: 3.4mm
Lacing Wire: Common Use 2.2mm
Highlight:

Galvanized Gabion Wire Mesh

,

Hexagonal Gabion Basket Wall

,

Water Conservancy Gabion Wire Mesh

PVC Coated Galvanized Gabion Wire Mesh Hexagonal Gabion Basket Wall

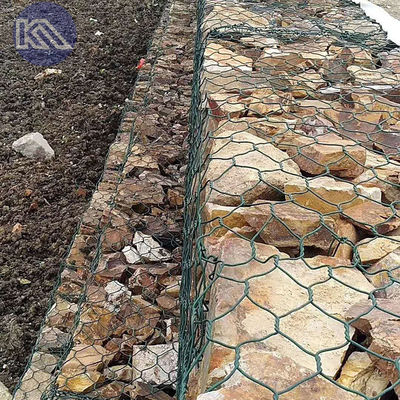

Gabion baskets are containers made of hexagonal double-twisted steel wire mesh, typically filled with stones on-site to form flexible, permeable structures. Widely used in water conservancy and environmental protection projects, these modular and stackable units adapt to various shapes and terrains while offering excellent scour resistance, deformation resistance, and corrosion resistance.
Product Specifications
  • Mesh Size: 60×80 mm, 80×100 mm, 100×120 mm, or custom sizes available
  • Dimensions: Length: 1-6 meters | Width: 0.23-2 meters | Height: 0.3-1 meter
  • Wire Diameter: 2.0-4.0 mm
  • Surface Treatment: Galvanizing, hot-dip galvanizing, PVC coating, Galfan coating
Mesh Sizes (mm) Gabion Basket Dimensions and Volumes Wire Diameter
60×80
80×100
100×120		 L(M): 4 | W(M): 2 | D(M): 0.3
Capacity(m³): 2.4 | Diaphragms: 3		 Mesh Wire:
2.0mm, 2.2mm, 2.5mm, 2.7mm, 3.05mm
2.0/3.0mm, 2.2/3.2mm, 2.5/3.5mm, 2.7/3.7mm

Selvedge Wire:
2.5mm, 2.7mm, 3.2mm, 3.4mm, 3.8mm
2.5/3.5mm, 2.7/3.7mm, 3.2/4.2mm, 3.4/4.4mm

Lacing Wire:
2.0mm, 2.2mm, 2.0/3.0mm, 2.2/3.2mm
L(M): 6 | W(M): 2 | D(M): 0.3
Capacity(m³): 3.6 | Diaphragms: 5
L(M): 4 | W(M): 2 | D(M): 0.23
Capacity(m³): 1.84 | Diaphragms: 3
L(M): 6 | W(M): 2 | D(M): 0.23
Capacity(m³): 2.76 | Diaphragms: 5
L(M): 2 | W(M): 1 | D(M): 0.5
Capacity(m³): 1 | Diaphragms: 1
L(M): 3 | W(M): 1 | D(M): 0.5
Capacity(m³): 1.5 | Diaphragms: 2
L(M): 4 | W(M): 1 | D(M): 0.5
Capacity(m³): 2 | Diaphragms: 3
L(M): 2 | W(M): 1 | D(M): 1
Capacity(m³): 2 | Diaphragms: 1
L(M): 3 | W(M): 1 | D(M): 1
Capacity(m³): 3 | Diaphragms: 2
L(M): 4 | W(M): 1 | D(M): 1
Capacity(m³): 4 | Diaphragms: 3
Other specifications can be custom manufactured to meet project requirements.
Product Advantages
  • Cost-effective: Simple stone filling and sealing process
  • Easy Installation: No specialized skills required
  • Weather-resistant: Excellent corrosion resistance in natural environments
  • Eco-friendly: Gaps between stones promote silt accumulation and plant growth
  • Transport Efficient: Foldable design reduces shipping costs
Application Fields
  • Water Conservancy Projects: Embankments, riverbank protection, and waterway lining to prevent scouring
  • Environmental Protection: Ecological restoration and soil conservation
  • Road Protection: Stabilizes road foundations and enhances durability
  • Coastal Protection: Seawalls and port projects resistant to wave erosion
Cooperation and Services
As a professional manufacturer, we provide high-quality gabion basket solutions for global water conservancy and environmental projects, working closely with government departments worldwide.
Pre-sales Services
  • Free samples available (customer pays freight)
  • Ample inventory for rapid delivery
  • Multiple style options
After-sales Services
  • Open to customer feedback on pricing and products
  • Dedicated support via email or phone
Pvc Coated Galvanized Gabion Wire Mesh Hexagonal Gabion Basket Wall For Water Conservancy And Eco Projects 0 Pvc Coated Galvanized Gabion Wire Mesh Hexagonal Gabion Basket Wall For Water Conservancy And Eco Projects 1
