Galvanized Gabion Cage Wall Woven Gabion Boxes Customized Protection Solutions

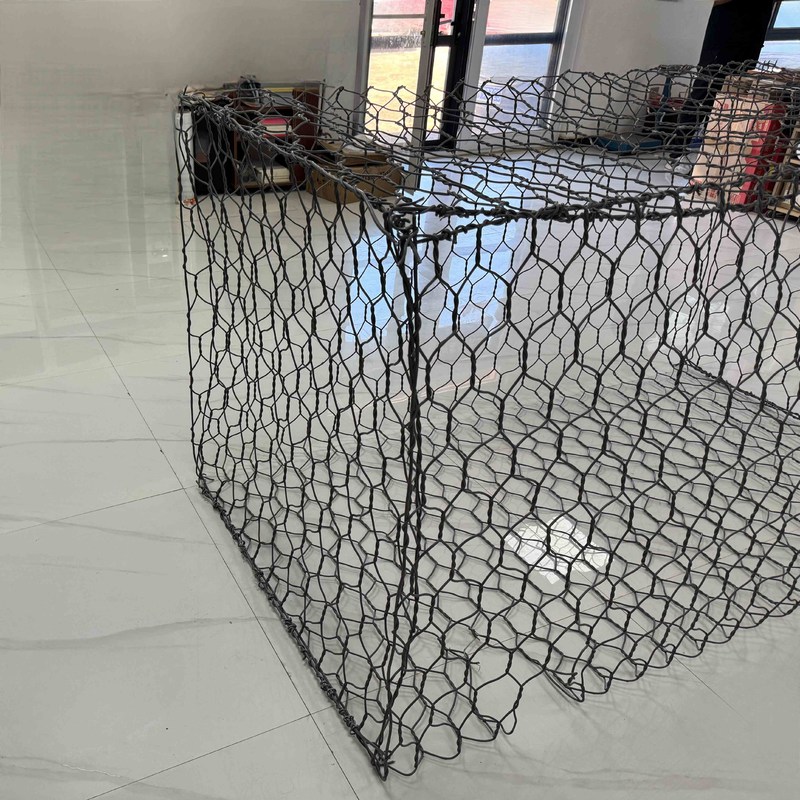

Large Image : Galvanized Gabion Cage Wall Woven Gabion Boxes Customized Protection Solutions

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	ISO CE
Model Number:	KN-G06

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD 12-17
Packaging Details:	Wooden pallets
Delivery Time:	7 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000000 pcs/ month

Contact Now Chat Now

Detailed Product Description

Product Name:	Gabion Basket	Aperture:	6080;80100;100*120;...
Wire Diameter:	2.0-2.7mm	Material:	Q 195 Steel Wire
Assembly:	Easily Assembled	Key Words:	Galvanized Hexagonal Cage
Highlight:	Galvanized gabion cage wall , Woven Gabion Boxes , Customized rock basket wall

Galvanized Gabion Cage Wall Woven Gabion Boxes Customized Protection Solutions

Product Description

Gabion mattresses (low-profile stone cages) excel in channel lining, dam construction, and riverbank reinforcement. Their galvanized steel mesh resists rust, while the compact structure withstands high-velocity water flow. Pre-filled with graded stones, they prevent scouring and sediment loss. Easy to install and eco-conscious, they're USDA- and ISO-certified for large-scale water management projects. Ideal for bridges, culverts, and coastal defenses.

Specifications

Product Name	Welded Gabion Box/Hexagonal Gabion Box
Material	Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Pattern	Welded
Packaging	Wood pallet
Connections	Spiral wire, U clip, Hog ring

Aperture (mm)	Wire Diameter (mm)	PVC Coated Wire Diameter Inner/outer(mm)	Gabion Basket Size(m)	Gabion Mattress Size(m)
60×80	2.0-2.8	2.0/3.0-2.8/3.8	1×1×0.5m, 1×1×1m, 2×1×0.5m, 2×1×1m, 3×1×0.5m, 3×1×1m, 4×1×0.5m, 4×1×1m (available custom)	1×1×0.3m, 2×1×0.3m, 3×1×0.3m, 4×1×0.3m, 4×2×0.3m, 6×2×0.3m (available custom)
80×100	2.2-3.2	2.2/3.2-3.0/4.0	Same as above
80×120	2.2-3.2	2.2/3.2-3.0/4.0	Same as above
100×120	2.4-3.5	2.4/3.4-3.2/4.2	Same as above
100×150	2.4-3.5	2.4/3.4-3.2/4.2	Same as above
120×150	2.7-4.0	2.7/3.7-3.5/4.5	Same as above
Other sizes can be customized.
