High Zinc Powder Coated Hexagonal Gabion Box Basket Hot Dipped Galvanized Aviary Rack For Stone Cage

Büyük resim : High Zinc Powder Coated Hexagonal Gabion Box Basket Hot Dipped Galvanized Aviary Rack For Stone Cage

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	KN
Sertifika:	ISO CE
Model numarası:	1x1x1 2x1xx 3x1x1

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100 adet
Fiyat:	USD 17-20
Ambalaj bilgileri:	Paletler
Teslim süresi:	7-8 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Günde 5000MW

İletişim Şimdi konuşalım.

Detaylı ürün tanımı

Ürün_adı:	Yüksek Çinko Tozu Kaplı Sıcak Battırılmış Galvanize Altıgen Gabyon Kutuları Sepeti Taş Kafesleri içi	Yüzey işleme:	Sıcak daldırılmış galvanizli
Çinko kaplama:	≥ 270g/m²	Boyut:	2m x 1m x 1m
Başvuru:	erozyon kontrolü, istinat duvarları, peyzaj	uzama:	≥ 10%
Tel Çapı:	3,05 mm	Malzeme:	Galvanizli çelik tel
Dayanıklılık:	Uzun ömürlü	Çekme Dayanımı:	350-500n/mm²
Örgü boyutu:	80mm x 100mm 100x120mm	Kurulum:	Kolay ve hızlı
Konektörler:	bağlayıcı bağlama teli	Montaj yöntemi:	bağlayıcı tel
Vurgulamak:	hexagonal gabion cages , hexagonal gabion basket , galvanized gabion cages

High Zinc Powder Coated Hexagonal Gabion Box Basket

Hot Dipped Galvanized Aviary Rack For Stone Cage

Fabricated from double-twisted hexagonal steel mesh (3.0-4.2mm wire) with Class A galvanization (≥265g/m²), these cages form modular units for critical hydraulic applications including weir construction, diversion channel armoring, and pump station protection. The 90×110mm mesh configuration accommodates 150-350mm stone fill, engineered for energy dissipation in high-velocity discharge zones.

Key Features

Economical installation - simply fill with stone and seal
Simple construction requiring no special techniques
Exceptional resistance to natural damage, erosion, and adverse weather
Can withstand significant deformation without structural failure
Silt accumulation promotes plant growth for environmental integration
Excellent permeability prevents hydrostatic pressure damage
Cost-effective transport - folds flat for shipping and assembles on-site
Rapid deployment enables parallel construction for tight schedules

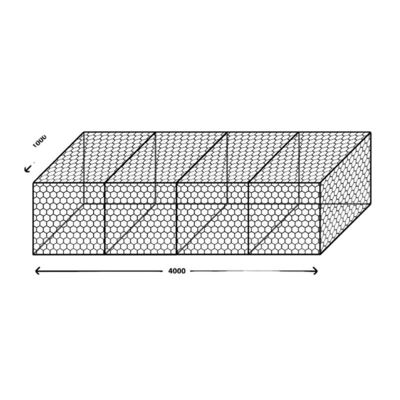

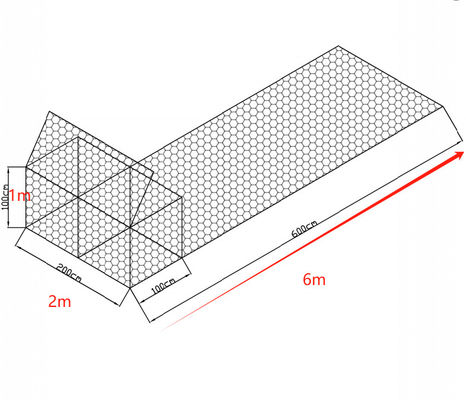

Technical Specifications

Size	Wire Diameter	Diaphragm	Length	Width	Height	Sqm	Color	Surface Treatment
60×80mm to 120×150mm	2.0-4.0mm (2.2mm, 2.7mm, 3.0mm common)	1	2m	1m	0.5m	7.5㎡	Silver, Dark, Green, Gray, Black	Hot dip galvanized, PVC coated, PE coated, Galfan
		1	2m	1m	1m	11㎡
		2	3m	1m	0.5m	10.5㎡

Applications

Ideal for transportation infrastructure, water conservancy projects, municipal engineering, landscaping, soil and water conservation. Available in specialized configurations for road gabion nets, alloy mesh bags, retaining walls, bridge protection, coastal defense, and riverbank stabilization.

Packaging Options
