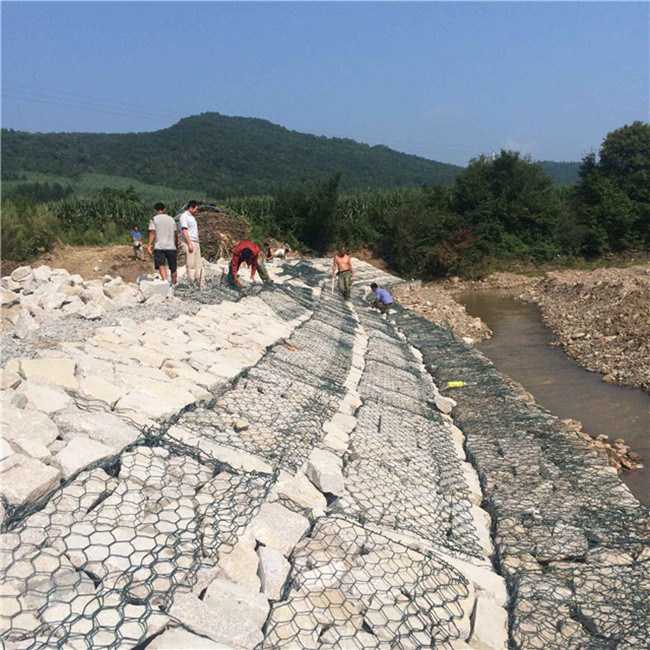

Galvanised Coated Woven Gabion Wall For Slope Protection And Landscape Greening

Duży Obraz : Galvanised Coated Woven Gabion Wall For Slope Protection And Landscape Greening

Szczegóły Produktu:

Miejsce pochodzenia:	CHINY
Nazwa handlowa:	KN
Orzecznictwo:	ISO CE
Numer modelu:	2x1x1

Zapłata:

Minimalne zamówienie:	100 szt
Cena:	USD 15-20
Szczegóły pakowania:	Palety
Czas dostawy:	8-10 dni
Zasady płatności:	Akredytywy, T/T, Western Union, MoneyGram
Możliwość Supply:	5000 m2 dziennie

Kontakt Rozmawiaj teraz.

Szczegółowy opis produktu

Cechy:	Elastyczne, trwałe, odporne na korozję	Średnica drutu:	2,0-4,0 mm
Wytrzymałość na rozciąganie:	350-500 N/mm²	Rozmiar siatki:	60x80 mm 80x100 mm 100x120 mm
Membrana:	1 m	Uszczelka:	paleta lub pakiet
Aplikacja:	Ściana oporowa, kontrola powodzi, kontrola erozji	Tworzywo:	Drut stalowy ocynkowany
Obróbka powierzchni:	Galwanizowany na gorąco	Sznurowanie drutu:	2,2 mm
Kolor:	Srebrny	Powłoka cynku:	≥ 270 g/m²
Zgromadzenie:	Łatwo zmontowany	Rozmiar panelu:	2x1x1 m
Drut spiralny:	2,2 mm
Podkreślić:	Landscape Greening woven gabion wall , Galvanised Coated Woven Gabion Wall , galvanised gabion wall Slope Protection

Galvanised Coated Woven Gabion Wall For Slope Protection And Landscape Greening

Gabion Box Stranded Galvanised Coated Woven Gabion Box Wall For Slope Protection And Landscape Greening

Woven Gabion Wall for Aquatic Infrastructure

Fabricated from high-carbon steel wire with double-twist hexagonal weaving (3.2-4.0mm diameter), our gabion walls feature 70×90mm mesh openings for precise stone retention in hydraulic environments. Designed for canal reinforcement, bridge scour prevention, and riverbed stabilization, these permeable structures integrate internal reinforcement wires and multi-layer configurations to withstand dynamic water forces. Compliant with ISO 9001 and ISO 1461 standards, the walls are deployed in complex water systems requiring terrain adaptability. Custom shapes (curved/angled) and extended lengths (up to 6m) available for specialized installations in tidal zones and flood-prone areas.

Specifications

Type	Mesh Size	Wire Diameter	Zinc Coating
Retaining Wall	80x100mm 100x120mm	2.7 mm	>260g/m²
Selveage Wire	-	3.4 mm	>275g/m²
Tie Wire	-	2.2 mm	>240g/m²
Sack Gabion box	60x80mm	2.4 mm	>240g/m²
Flood Control	Customized Size	2.0 ~ 4.0 mm	-

Key Features and Benefits

Durability and Longevity: Constructed with galvanized steel or PVC-coated wires, our Gabion Walls are highly durable and require little maintenance. This makes them a cost-effective solution for long-term projects.
Permeability: The design allows water to pass through while retaining soil and stones, preventing water buildup behind the wall and reducing erosion risk.
Flexibility and Adaptability: Can be easily adapted to different terrains and project requirements in various shapes and sizes.
Environmental Friendliness: Can be filled with locally sourced materials, reducing transportation costs and supporting local economies while promoting biodiversity.
Aesthetic Appeal: Natural stone appearance blends seamlessly with surrounding environments.

Applications

Soil stabilization and slope protection
Riverbank and coastal erosion control
Retaining walls for roads, bridges, and dams
Noise barriers in urban areas
Landscaping and decorative purposes

Company Strengths

Our company has extensive experience in constructing government engineering projects. We have a proven track record of delivering high-quality Gabion Wall solutions that meet strict engineering standards. Our team of experts ensures that each project is carefully designed and executed to provide long-lasting results.
