| 製品名: | 石充填保持蛇籠構造用の堅牢な亜鉛メッキ織メッシュケージ | キーワード: | Gabionの網のおり |
|---|---|---|---|
| アドバンテージ: | 洪水制御保持壁 | 加工サービス: | 二重ひねり |
| メッシュパネルのサイズ: | 2x1x1m、3x1x1m、4x1x1m | 耳ワイヤー直径: | 3.4-4.0mm |
| メッシュサイズ: | 60x80mm、80x100mm、100X120mm | コーティング: | PVCで覆われたり,ガルバン化されたり |
| 材料: | 亜鉛メッキ線 | 認証済み: | CE,ISO |
| ハイライト: | galvanized gabion mesh cage,stone retaining gabion structures,woven mesh cage for gabions |
||

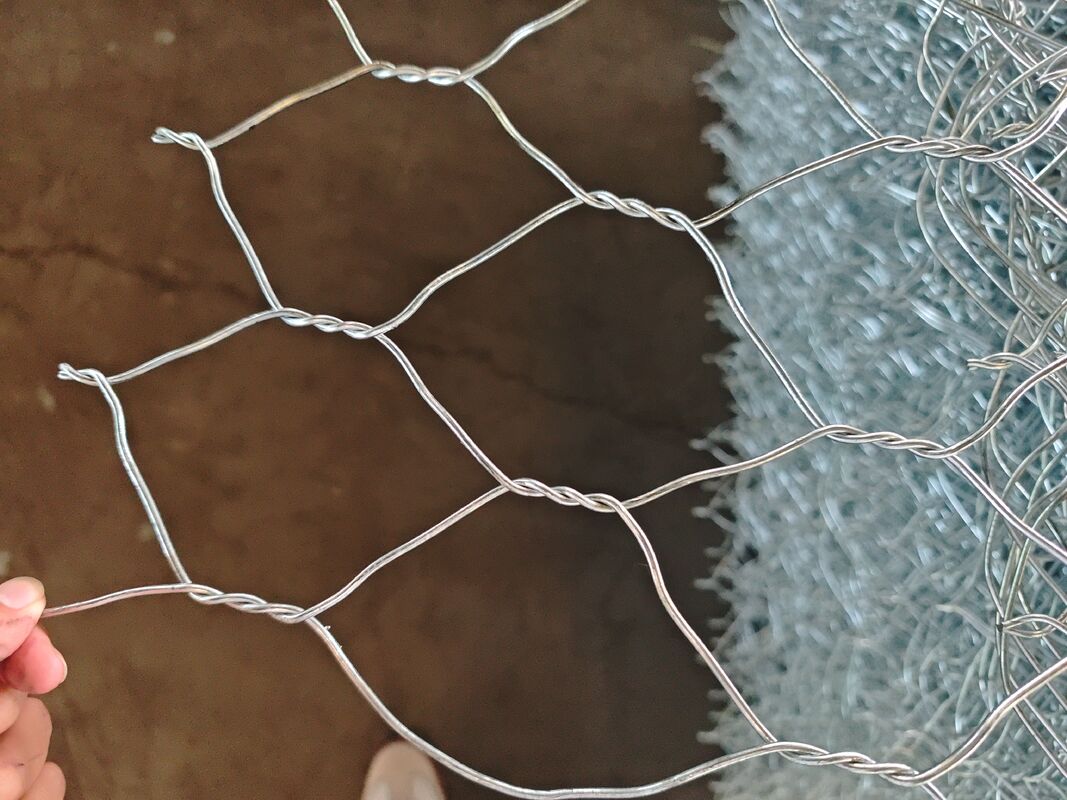

Gabion Mesh is also called gabion box, stone gabion mesh,gabion basket, hexagonal wire netting gabion and gabion wall etc. According to its weave method, it includes hexagonal gabion mesh and welded gabion mesh. Gabion mesh could be electro galvanized gabion mesh,hot dipped galvanized gabion mesh, zinc- aluminum -mischmetal (Zn-Al-MM) alloy gabion mesh (Galfan gabion mesh), polyester powder(PVC) coated gabion mesh and polyester powder(PVC) coated after galvanized gabion mesh etc.
The performance of a gabion retaining wall heavily depends on its raw materials. We only use premium-grade steel wire coated with advanced anti-corrosion technologies to ensure a service life of up to 50+ years.
pecification
| Hole (mm) | Mesh wire(mm) | Side wire(mm) | Binding wire(mm) | Max width |
| 60X80 | 2.0~2.8 | 3.0~4.0 | 2.0~2.2 | 4M |
| 80X100 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
| 80X120 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
| 100X120 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
| 100X150 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
| 120X150 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
Our state-of-the-art manufacturing facility ensures that every gabion retaining wall basket meets international standards (such as ASTM or EN). Our rigorous production line includes:
Wire Drawing & Coating: Premium steel rods are drawn to precise diameters (typically 2.0mm to 4.0mm) and coated with zinc or Galfan.
Hexagonal Weaving / Welding: Wire is double-twisted into a flexible hexagonal mesh (for rockfall and river control) or welded into rigid grids (for architectural landscaping).
Cutting & Edging: The mesh is cut to specific dimensions, and thicker selvedge wire is woven into the edges to prevent unraveling.
Assembling & Folding: Baskets are pre-assembled, quality-checked, and folded flat for economical shipping and easy on-site installation.
Whether it is a massive civil engineering project or a modern architectural landscape, gabion retaining walls offer unparalleled flexibility.
Erosion Control & Riverbank Stabilization: The permeable nature of gabions allows water to flow through freely, relieving hydrostatic pressure and preventing soil washouts along riverbanks.
Slope Protection & Highway Engineering: Installed along highways and railways to prevent landslides, stabilize slopes, and protect infrastructure from rockfalls.
Urban Landscaping & Architectural Walls: Filled with decorative stones, gabions serve as stunning feature walls, sound barriers, and garden retaining structures for contemporary commercial designs.
Why Choose Our Gabion Solutions? Our gabion baskets are designed for easy assembly, requiring no specialized labor. They naturally blend into the environment over time as vegetation grows through the stone infill, creating a truly green infrastructure.
