Hot Dipped Galvanized Zn95% Al5% Galfan Coated Heavy-Duty Gabion Mesh Cage for Erosion Control

大画像 : Hot Dipped Galvanized Zn95% Al5% Galfan Coated Heavy-Duty Gabion Mesh Cage for Erosion Control

商品の詳細:

起源の場所:	チアン
ブランド名:	KN
証明:	ISO, CE, COC, CO
モデル番号:	KN211

お支払配送条件:

最小注文数量:	1000
価格:	Negotiate
パッケージの詳細:	コンテナ用バンドルでは、LCL配送はパレットを使用します
受渡し時間:	5～8営業日
支払条件:	L/C、T/T、ウェスタンユニオン
供給の能力:	30000平方メートル/7日

連絡先今雑談しなさい

詳細製品概要

製品名:	蛇籠擁壁用 80*100mm メッシュの六角形の金網	キーワード:	蛇籠バスケット
材料:	亜鉛メッキ鉄ワイヤ、低炭素鉄ワイヤ、PVCワイヤ、ガルファンワイヤ	穴の形状:	六角形、二重ひねり
ワイヤーゲージ:	2.4mm、2.5mm、2.7mm、2.8mm、3.05mm	応用:	ガビオン、ケージ、勾配保護、フェンスメッシュ、構造ワイヤーメッシュ
タイプ:	六角形のワイヤーメッシュ、二重ひねり	絞り:	80100mm、100120mm、60*80mmなど
表面処理:	熱い浸漬亜鉛めっき、PVCCOATED、亜鉛メッキ+PVCコーティング	色:	緑、黒、
パッキング:	パレット、バンドル	サンプル:	無料

Hot Dipped Galvanized Zn95% Al5% Galfan Coated Heavy-Duty Gabion Mesh Cage for Erosion Control

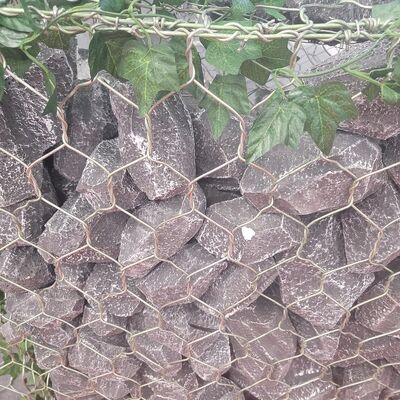

Gabion Mesh Cages serve as essential structures to retain earth and prevent erosion. These durable and environmentally friendly walls are made from welded steel baskets filled with large stones. By leveraging the weight of the stone-filled baskets and the permeability of the structure, gabions allow water to naturally drain through the voids between the stones, making them an ideal solution for urban infrastructure projects.

Available in different sizes to meet various requirements, gabion cages can be used together with filter cloth to prevent soil loss.

Common Gabion Project Types

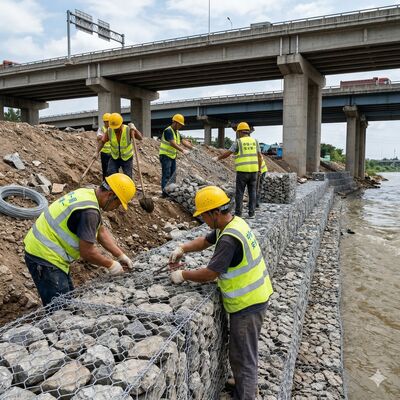

Retaining Walls: Stabilize slopes, prevent soil erosion, and manage water runoff in gardens, parks, and along roads.
Landscape Features: Create raised garden beds, seating, steps, or decorative walls.

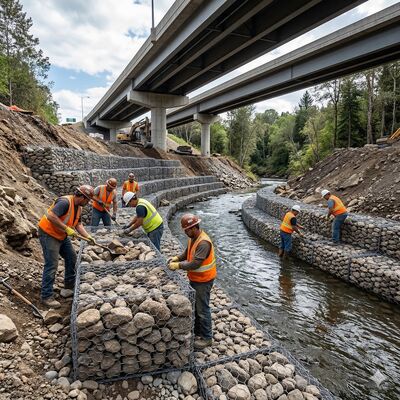

Erosion Control: Used in streambanks and gullies to slow water flow and protect banks.

Product Specifications

Attribute	Value
Material	Hexagonal gabion wall, mesh retaining wall galvanized
Hole shape	Hexagonal, Double Twist
Wire gauge	2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm, 2.2mm, 2.0mm
Application	Riverbank and Slope Retaining Wall Construction
Type	Hexagonal wire mesh, Double Twist
Aperture	80100mm, 100120mm, 60*80mm, etc.
Surface treatment	Hot Dipped Galvanized, PVC coated, Galvanized+PVC Coated
Color	Green, black, Grey
Packing	Pallet, Bundle
Usage	Flood Control Retaining Wall, Protection
Sample	Available
Size	2m1m1m, 1x1x0.5m, 411m, 511m, Customized
Feature	Easily Assembled, less transport freight, Strong and Durable, Simple installation
Width	2' -2m, 0.914m~1.83m, 0.5-2m, 1M
Zinc coated	40-60g, 60g-80g, 270g, 245g

Standard Gabion Basket Sizes

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	1	0	1
2	1	1	1	2
3	1	1	2	3
4	1	1	3	4
5	1	1	4	5
6	1	1	5	6

Gabion Mattress Sizes

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	0.3/0.5	0	0.3/0.5
2	1	0.3/0.5	1	0.6/1
3	1	0.3/0.5	2	0.9/1.5
4	1	0.3/0.5	3	1.2/2
5	2	0.3/0.5	4	3/5
6	2	0.3/0.5	5	3.6/6

Technical Specifications

Parameter	Description	Typical Value / Range
Material	Base material used for constructing the mesh	HDP/Galvanized Wire, PVC Wire
Coating	Surface treatment for enhanced corrosion resistance	Galvanized, HDP Galvanized, PVC Coated
Wire Diameter	The thickness of the wires used in the mesh	Mesh Wire: 2.0~3.05mm Selvage Wire: 2.4~4.0mm Tie Wire: 2.0~2.4mm
Mesh Opening Size	The size of the openings between wires	6080mm, 80100mm, 100120mm, 120150mm
Overall Dimensions	Standard Gabion Roll and Gabion Basket Size	Gabion Roll Width: 1~4m Gabion Basket: 111m to 611m
Lifespan	Expected service life	6~20 years (depends on environment)
